Electro-Voice EVF-1122D/94-PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (White)

High-Performance Loudspeaker for Semi-Outdoor Installations
The Electro-Voice EVF-1122D/94-PIW is a 12-inch, two-way full-range loudspeaker designed to deliver superior audio performance for semi-outdoor applications. Combining exceptional sound clarity with robust weather resistance, this system is perfect for venues requiring professional-grade sound reinforcement under protected outdoor spaces. Whether used in stadiums, pavilions, or large venues, the EVF-1122D offers reliability and flexibility to meet demanding audio needs.

Exceptional Audio Quality with High-Output Components
At the core of the EVF-1122D/94-PIW is a DH7N 3-inch titanium compression driver paired with a DVX3121A 12-inch low-frequency transducer. Engineered using advanced FEA optimization, these components ensure low distortion, high efficiency, and crystal-clear sound, even at maximum sound pressure levels. The 90° x 40° constant directivity waveguide provides focused, consistent audio coverage, ensuring intelligibility across the target area.

Weatherized Construction for Long-Lasting Durability

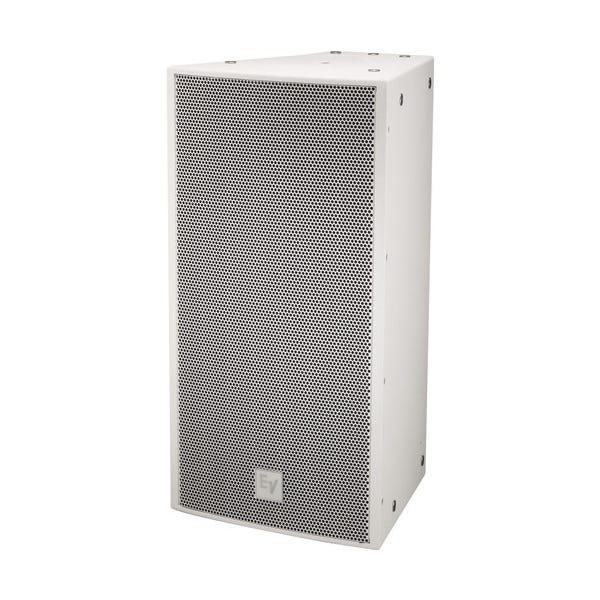

The EVF-1122D/94-PIW features a rugged trapezoidal enclosure constructed from 13-ply birch and coated with Electro-Voice’s durable EVCoat finish. This PI-weatherized loudspeaker is ideal for semi-outdoor use, where exposure to the elements is indirect, such as under roof overhangs or covered outdoor spaces. Its stainless-steel grille with hydrophobic cloth protects internal components from moisture, enhancing its reliability in challenging conditions.

Flexible Rigging Options for Easy Installation
Designed with installation flexibility in mind, the EVF-1122D includes 22 M10 threaded suspension points, allowing for versatile rigging in vertical or horizontal orientations. The rotatable waveguide adds further adaptability, making it easy to configure sound coverage based on your venue’s unique needs. Its input panel features dual 4-pin Phoenix-style connectors with a CDG dual-gland-nut cover for secure, weather-resistant cable connections.

Passive and Bi-Amp Modes for Optimized Performance
The EVF-1122D/94-PIW offers the option to operate in passive or bi-amp mode. An externally accessible jumper switch on the input panel allows quick and easy mode selection. The advanced fourth-order crossover network ensures smooth transitions and provides high-frequency driver protection, delivering reliable audio performance in every configuration.

Designed for Superior Sound Coverage
The 90° x 40° waveguide provides consistent coverage for mid-far throw applications, ensuring sound is evenly distributed across the audience area. Whether used in single installations or combined in clusters, the EVF-1122D delivers a balanced mix of power, precision, and clarity that makes it a standout choice for semi-outdoor sound reinforcement.
