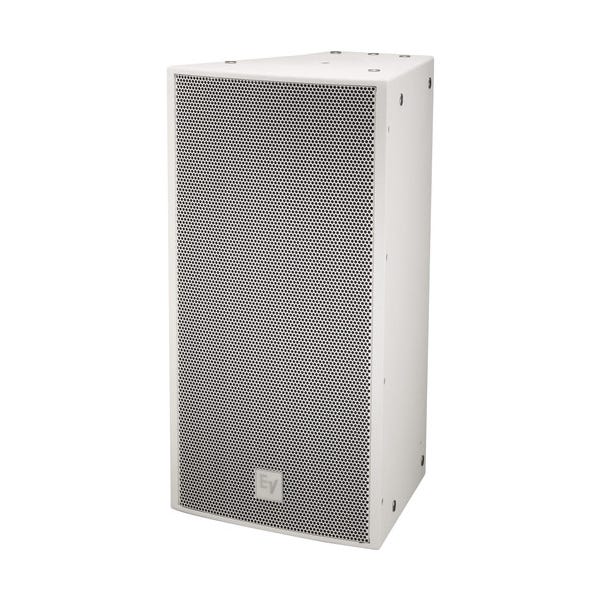

Electro-Voice EVF-1122D/66-PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (White)

High-Performance Sound for Semi-Outdoor Applications
The Electro-Voice EVF-1122D/66-PIW is a 12-inch, two-way full-range loudspeaker system designed for high-quality sound reinforcement in semi-outdoor environments. With a durable EVCoat finish and a weather-resistant stainless steel grille, this speaker is perfect for covered outdoor applications requiring professional-grade audio. Its 60° x 60° constant directivity waveguide ensures even sound distribution across wide listening areas.

Reliable Audio Reproduction with Premium Components
Equipped with the DH7N 3-inch titanium compression driver, the EVF-1122D/66-PIW delivers clean, crisp high frequencies. The DVX3121A 12-inch low-frequency transducer complements this with powerful bass and midrange performance, ensuring high intelligibility and low distortion at any volume level. This combination makes the speaker ideal for music playback, speech clarity, and live sound reinforcement.

Weatherized Design for Semi-Outdoor Installations
The enclosure is constructed from 13-ply birch plywood and finished with Electro-Voice’s EVCoat for exceptional durability in semi-protected outdoor settings. The weatherized design includes a stainless steel grille with a hydrophobic cloth, providing resistance to moisture and dust. This makes the EVF-1122D/66-PIW suitable for installations under roof overhangs, covered patios, and similar sheltered outdoor spaces.

Flexible Waveguide for Precise Coverage
The 60° x 60° rotatable constant directivity waveguide ensures consistent sound dispersion, whether the speaker is mounted vertically or horizontally. This flexibility allows integrators to achieve precise audio coverage for both wide and focused audience areas, making it a versatile choice for diverse installation needs.

Simplified Installation with Rigging Options
With 22 M10 threaded suspension points, the EVF-1122D/66-PIW can be mounted in a variety of configurations, including vertical or horizontal clusters. The trapezoidal enclosure design makes installation easier and ensures seamless alignment with other speakers. A dual-gland-nut input panel cover protects the connectors, ensuring secure wiring in semi-outdoor environments.

Passive and Active Operation Modes
The speaker supports both passive and bi-amp operation, offering added versatility for different audio systems. Switching between modes is simple, thanks to an externally accessible jumper on the input panel. This flexibility allows users to optimize the speaker’s performance based on the application requirements.
