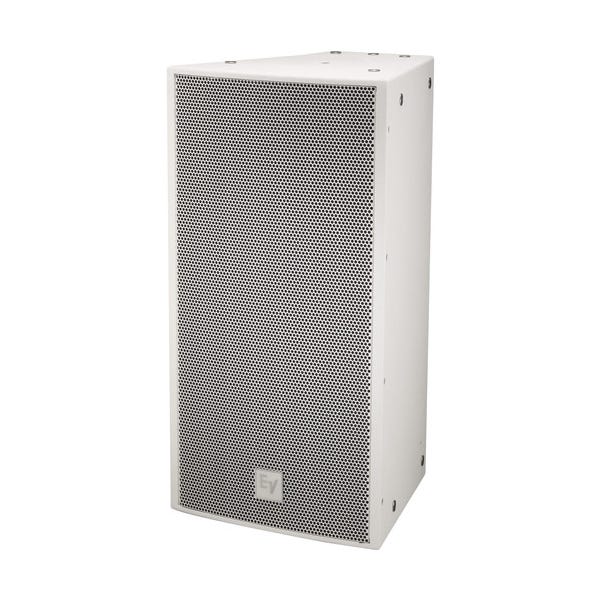

Electro-Voice EVF-1122D/64-PIW 12" 2-Way Full-Range Semi-Outdoor Loudspeaker (White)

High-Performance Loudspeaker for Semi-Outdoor Applications
The Electro-Voice EVF-1122D/64-PIW is a weatherized 12-inch, two-way loudspeaker system engineered to provide exceptional sound clarity and reliability for semi-outdoor environments. Designed for high-quality sound reinforcement, it combines a powerful 12-inch woofer with a precise 60° x 40° rotatable waveguide to deliver controlled audio coverage in various settings. Whether installed under an overhang or within a protected outdoor structure, this loudspeaker is a versatile solution for demanding audio applications.

Durable Construction for Semi-Outdoor Use
Built to withstand challenging environmental conditions, the EVF-1122D/64-PIW features a PI-weatherized design. The enclosure is constructed from 13-ply birch and finished with Electro-Voice’s rugged EVCoat for protection against moisture and wear. A stainless-steel grille with a hydrophobic cloth layer further shields internal components from humidity and dust, ensuring long-term reliability in semi-outdoor installations.

Exceptional Sound Coverage with a Rotatable Waveguide
This loudspeaker utilizes a 60° x 40° rotatable waveguide to provide consistent and focused sound dispersion. The waveguide can be adjusted for horizontal or vertical mounting, making it ideal for installations that require precise audio targeting. Whether deployed individually or in clusters, the EVF-1122D/64-PIW ensures uniform sound coverage across the listening area, minimizing unwanted reflections and delivering intelligible sound.

Powerful and Accurate Audio Performance
The EVF-1122D/64-PIW is equipped with the advanced DVX3121A 12-inch low-frequency transducer and a DH7N 3-inch titanium compression driver. This combination produces clean, distortion-free audio with a sensitivity of 97 dB and a maximum SPL of 131 dB. The fourth-order crossover network enhances vocal clarity and protects high-frequency components, resulting in a balanced and reliable audio experience at high sound pressure levels.

Flexible Rigging and Installation Options
With 22 M10 threaded suspension points, the EVF-1122D/64-PIW offers extensive mounting flexibility. It can be installed in vertical or horizontal orientations and integrated into audio clusters for broader coverage. The input panel features a dual-gland-nut input cover with a Phoenix-style connector, ensuring weather-resistant and secure wiring for long-term installations in semi-outdoor environments.

Perfect for Protected Outdoor Installations
Ideal for stadiums, arenas, and other covered outdoor spaces, the EVF-1122D/64-PIW combines durability with outstanding audio performance. Its ability to withstand semi-exposed conditions while delivering consistent, high-quality sound makes it a trusted choice for professional installations that demand both reliability and precision.
