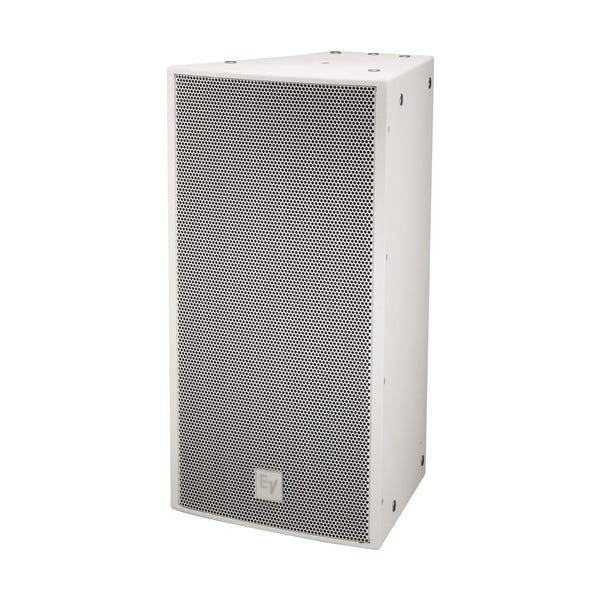

Electro-Voice EVF-1122D/126-WHT 12" 2-Way Full-Range Indoor Loudspeaker System

Powerful Two-Way Full-Range Loudspeaker for Indoor Installations
The Electro-Voice EVF-1122D/126-WHT is a 12-inch two-way full-range loudspeaker designed for professional audio applications requiring consistent and wide sound coverage. Featuring a 120° x 60° rotatable waveguide, it ensures uniform sound distribution for near-field use in houses of worship, theaters, auditoriums, and other performance venues. Its sleek white finish and high-performance design make it the ideal solution for installations where sound clarity and aesthetics are equally important.

Crisp High Frequencies with Titanium Compression Driver
The EVF-1122D/126-WHT is equipped with the high-output DH7N 3-inch titanium compression driver. This driver delivers clean, articulate high frequencies with remarkable efficiency and clarity, ensuring every detail of vocals, music, and speech is heard accurately. Coupled with the constant directivity waveguide, it ensures smooth and even coverage, eliminating audio hotspots and dead zones.

Deep, Low-Distortion Bass for Full-Range Audio
The system’s 12-inch DVX3121A low-frequency transducer provides deep, impactful bass with minimal distortion. Engineered with advanced symmetric drive technology, it delivers powerful low-end response while maintaining high intelligibility. With 97 dB sensitivity and a maximum SPL of 131 dB, this speaker provides excellent sound output, making it ideal for demanding audio applications.

Flexible Coverage with Rotatable Waveguide
The 120° x 60° constant directivity waveguide is fully rotatable, allowing for seamless installation in both vertical and horizontal orientations. This flexibility ensures that the EVF-1122D/126-WHT can adapt to the acoustics of any space, providing wide and even sound coverage regardless of mounting configuration. Whether installed individually or as part of a cluster, this speaker consistently delivers clear and balanced audio.

Durable Construction with a Sleek White Finish
Built with a 13-ply birch enclosure and finished in weather-resistant EVCoat, the EVF-1122D/126-WHT offers exceptional durability while maintaining a clean, professional appearance. Its white finish blends effortlessly into environments where aesthetics are a priority, making it an excellent choice for houses of worship, high-end venues, and modern architectural settings.

Reliable Crossover Design for Long-Term Performance
This loudspeaker features an advanced fourth-order passive crossover network with HF protection. The crossover ensures seamless transitions between low and high frequencies while protecting the high-frequency driver from excessive input levels. This design guarantees long-term reliability and consistent performance, even in high-output situations.

Easy Installation with Multiple Rigging Points
The EVF-1122D/126-WHT features 22 M10 threaded suspension points, allowing for secure and flexible mounting options. Whether flown, wall-mounted, or integrated into clusters, the loudspeaker can be positioned to achieve optimal sound coverage. Its versatile rigging design simplifies the installation process, saving time and effort for audio professionals.
