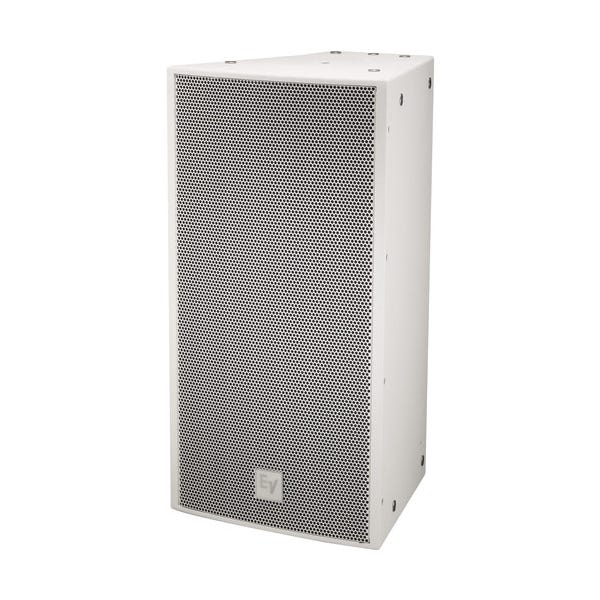

Electro-Voice EVF-1122D/126-FGW 12" 2-Way Full-Range Outdoor Loudspeaker System

High-Performance Weatherized Loudspeaker for Outdoor Applications
The Electro-Voice EVF-1122D/126-FGW is a powerful 12-inch two-way full-range loudspeaker system designed for exceptional sound reinforcement in outdoor environments. Featuring a fiberglass-coated, weather-resistant enclosure, this loudspeaker ensures reliable performance under harsh conditions while delivering high-quality audio output. Its precision-engineered components make it a perfect choice for stadiums, outdoor venues, theme parks, and public spaces requiring clear, consistent sound.

Exceptional Audio Clarity with Titanium Compression Driver
Equipped with the high-output DH7N 3-inch titanium compression driver, the EVF-1122D/126-FGW produces clear and articulate highs. Paired with a constant directivity 120° x 60° rotatable waveguide, this driver ensures consistent sound distribution across large spaces. The result is smooth, even audio coverage that enhances both music and speech clarity in any outdoor setting.

Optimized Low-End Performance for Powerful Sound
At the core of the EVF-1122D/126-FGW is the DVX3121A 12-inch low-frequency transducer. Engineered using advanced FEA optimization, this woofer offers high efficiency, low distortion, and excellent intelligibility at high sound pressure levels. Whether handling low-end reinforcement for music or clear vocal reproduction, the speaker delivers deep, accurate bass with unmatched reliability.

Advanced Crossover Network for Seamless Frequency Response
The EVF-1122D/126-FGW features a fourth-order crossover network with steep 24 dB-per-octave slopes, ensuring smooth transitions between low and high frequencies. Equalization is optimized for accurate vocal reproduction, while a built-in HF protection circuit safeguards the compression driver from overloading. This ensures long-term durability without compromising sound quality.

Durable Weather-Resistant Enclosure for Outdoor Reliability
Constructed with a 13-ply birch enclosure and coated with fiberglass, this speaker is built to withstand exposure to the elements. The weatherized design ensures maximum protection against moisture, UV rays, and temperature changes, making it an ideal solution for permanent outdoor installations. The input panel features a dual-gland nut cover plate for added weatherproofing, ensuring secure and protected connections.

Flexible Mounting Options for Versatile Installations
The trapezoidal enclosure of the EVF-1122D/126-FGW includes 22 M10 threaded suspension points, allowing for flexible mounting configurations. The constant directivity waveguide can be rotated to accommodate vertical or horizontal speaker orientations, making it easy to customize the setup to match the needs of any venue. This versatility enables the speaker to be used as a standalone system or as part of a larger cluster.

Simple Connectivity and Active/Passive Switching
The loudspeaker includes a dual 4-pin Phoenix-style connector for secure wiring and simplified installation. For added flexibility, an externally accessible jumper allows users to easily switch between passive and active operation, accommodating different system designs and amplifier configurations.
