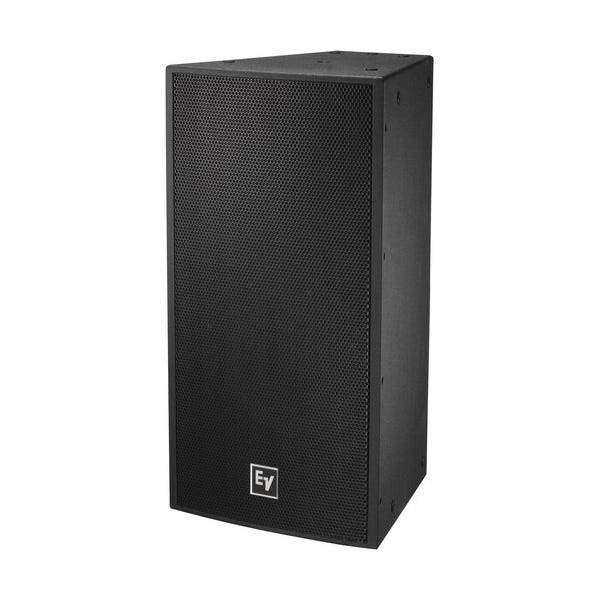

Electro-Voice EVF-1122D/126-FGB 12" 2-Way Full-Range Outdoor Loudspeaker System

Weather-Resistant Full-Range Loudspeaker for Outdoor Applications
The Electro-Voice EVF-1122D/126-FGB is a 12-inch two-way full-range outdoor loudspeaker system designed to provide superior sound quality in any weather condition. Built to withstand extreme outdoor environments, this speaker features a weatherized, fiberglass-coated enclosure, ensuring reliable performance in demanding applications. With its high-output compression driver and precision-engineered woofer, the EVF-1122D/126-FGB delivers consistent audio clarity and powerful sound reinforcement for stadiums, theme parks, and outdoor venues.

Powerful Compression Driver for High-Quality Sound
At the core of the EVF-1122D/126-FGB is the DH7N 3-inch pure titanium compression driver, which ensures crystal-clear highs with maximum efficiency. The driver is paired with a constant directivity 120° x 60° rotatable waveguide, which disperses sound evenly across the coverage area. This design guarantees consistent audio performance whether the speaker is mounted vertically or horizontally, making it ideal for a variety of outdoor setups.

High-Efficiency Woofer for Deep and Accurate Bass
The EVF-1122D/126-FGB features the DVX3121A 12-inch low-frequency transducer, developed using FEA optimization for unmatched clarity and efficiency. With its fully symmetric drive motor and optimized suspension design, the woofer delivers deep, distortion-free bass even at high sound pressure levels. The result is a balanced and natural sound profile that excels in outdoor environments where both speech intelligibility and music performance are critical.

Advanced Crossover Network for Seamless Frequency Response
This loudspeaker is equipped with a fourth-order crossover network with steep 24 dB-per-octave slopes, ensuring smooth transitions between high and low frequencies. The advanced network includes equalization for accurate vocal reproduction and linear off-axis response. A built-in protection circuit safeguards the high-frequency driver, providing long-term reliability for continuous outdoor use.

Weatherized Enclosure for Extreme Durability
The EVF-1122D/126-FGB is housed in a weather-resistant, 13-ply birch enclosure coated with fiberglass for maximum protection against moisture, dust, and temperature changes. This rugged construction ensures reliable operation in harsh outdoor conditions, making it a dependable solution for long-term installations. The enclosure also includes a dual-gland nut cover plate on the input panel, further enhancing its weatherproofing capabilities.

Flexible Installation with Rotatable Coverage Pattern
Designed with flexibility in mind, the 120° x 60° constant directivity waveguide can be rotated to adapt to either horizontal or vertical speaker orientations. The enclosure features 22 M10 threaded suspension points, allowing for versatile mounting options, including clusters and arrays. Whether installed individually or as part of a larger system, the EVF-1122D/126-FGB ensures precise sound coverage.

Convenient Connectivity for Outdoor Systems
The speaker includes a Phoenix-style connector with an integrated dual-gland nut input panel cover, ensuring secure and weatherized connections. An external jumper allows you to switch between passive and active operation easily, offering additional flexibility for system configurations.
