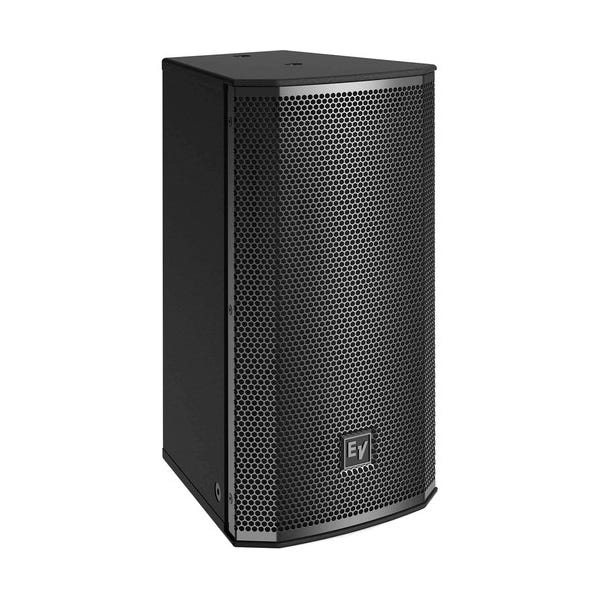

Electro-Voice EVC-1082-96B 8" Two-Way Passive PA Installation Speaker with Rotatable Horn (Black)

Superior Sound Clarity with the EVC-1082-96 Speaker
Discover exceptional audio performance with the Electro-Voice EVC-1082-96, an 8" two-way passive PA installation speaker. Perfect for smaller venues such as houses of worship, conference centers, performance spaces, and meeting rooms, this speaker is engineered to deliver not just sound, but an experience. With its high efficiency and compact design, it stands out as a cost-effective solution for professional audio needs.

Optimized Coverage for Any Venue
The EVC-1082-96 offers a 90 x 60° coverage pattern, achieving a maximum sound pressure level of 120 dB. This makes it ideal for environments that demand clear, detailed sound across a wide frequency range. Whether mounted horizontally or vertically, its rotatable horn ensures consistent coverage and superior sound dispersion that can adapt to any room's acoustics.

High-Quality Audio Components for Enhanced Performance
Powering this speaker is an 800W (peak) amplifier that drives a 1.25" titanium dome compression driver and an 8” woofer. This combination ensures that the EVC-1082-96 reproduces crisp, dynamic audio from 75 Hz to 21 kHz. The high-frequency compression driver couples directly to a constant directivity waveguide, providing uniform pattern control and a smooth, linear response.

Durable and Versatile Design
Constructed from 15mm plywood with a robust EVCoat finish, the EVC-1082-96 is built to last. Its design not only enhances sound quality but also ensures durability in various installation environments. The rear panel features dual four-pin Phoenix/Euroblock screw terminals that accommodate up to 10 AWG speaker cable, facilitating easy daisy-chaining of additional speakers.

Easy Installation with Multiple Configurations
The speaker includes eight M10 suspension points, offering flexibility in installation whether you need a horizontal or vertical setup. This feature, combined with the rotatable waveguide, allows audio engineers to fine-tune speaker placement for optimal sound distribution in any configured space.
