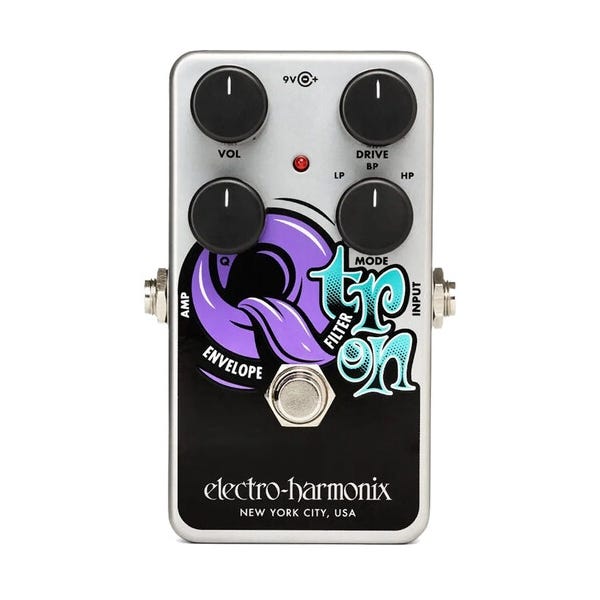

Electro-Harmonix Nano Q-Tron Envelope Filter Pedal

Electro-Harmonix Nano Q-Tron: The Full Q-Tron Voice in Its Smallest Box

The Electro-Harmonix Nano Q-Tron is an envelope-controlled filter, an auto-wah pedal, built into EHX's smallest Nano enclosure for players who need to save every inch of pedalboard space. The volume of your playing sweeps a resonant filter, producing the funky, vocal, hands-free wah that made the Q-Tron a legend. Nothing about the sound is scaled down; only the footprint is. For the funk and bass player with a crowded board, the Nano delivers the complete Q-Tron experience where a bigger pedal simply would not fit. Plug in, lock into a groove, and the filter answers every note.

How an Envelope Filter Reads Your Dynamics

An envelope filter tracks the envelope, the rising and falling loudness, of your input and uses it to move a resonant filter's cutoff frequency. When you pick harder the filter sweeps upward, and as the note fades it falls back, creating the automatic vowel-like wah. The Drive control sets how sensitive that sweep is to your dynamics, effectively turning your picking hand into the expression pedal. This is what gives the Nano Q-Tron its lively, responsive feel. A gentle touch produces soft motion, while a sharp attack throws the filter wide open.

Low, Band, and High Pass Modes

The Mode rotary selects the filter type the envelope drives, and each shape has its own voice. Low Pass yields the deep, round, bass-heavy quack central to classic funk. Band Pass focuses the response into a vocal, nasal midrange that cuts through a mix, while High Pass produces brighter, thinner, more synth-like sweeps. Having all three shapes in such a small pedal means the Nano can move from subtle wah to dramatic filter effects. It is a lot of tonal range for its size.

Drive and Q: From Subtle to Ultra-Funky

The Drive control sets the pedal's sensitivity to your input level and picking dynamics, deciding how easily the filter opens. The Q control sets how narrow and resonant the filter peak is, shaping how vocal or aggressive each sweep sounds. A low Q gives smooth, gentle movement, while a high Q produces the sharp, quacky peak that defines funk guitar and bass. Together they let you dial anything from a light clean shimmer to an extreme, rubbery auto-wah. These two knobs carry the Nano Q-Tron's whole personality.

Tiny Footprint, Efficient Power

The Nano Q-Tron draws just 10 milliamps of current, so it fits comfortably on any pedalboard power supply alongside other effects. It runs on a 9-volt battery or an optional 9.6-volt DC supply, using a standard center-negative connection, and the manual notes you should not exceed 12 volts. Its ultra-compact enclosure claims minimal real estate, which is exactly why players choose the Nano format. True-bypass switching keeps your dry tone intact when the effect is off. Low power draw and a small footprint make it one of the easiest filters to integrate into a packed rig.

Voiced for Every Instrument, and Who It Is For

The Nano Q-Tron is equally effective on guitar, bass, keys, and horn, because its Drive and Q controls adapt to a wide range of signals. Bassists reach for it to drive funky disco and R&B lines, while guitarists use it for quacky rhythm and lead auto-wah. Keyboard players run synths and electric pianos through it for swept, resonant textures. It suits any player who wants the full Q-Tron voice but is fighting for pedalboard space. If board real estate is precious and you refuse to compromise on the sound, the Nano is the Q-Tron to buy.
