Elation Lighting Proteus Rayzor 760 OPS

Powerful Wash Fixture Designed for Permanent Outdoor Installations

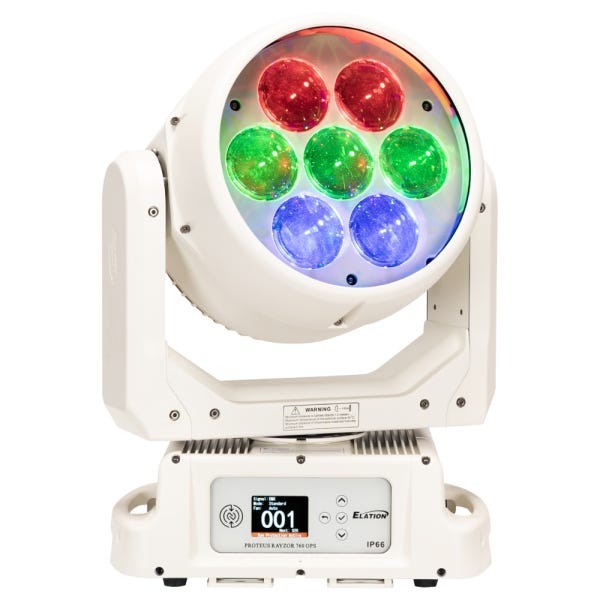

The Proteus Rayzor 760 OPS is a high-performance outdoor-rated LED wash fixture that delivers stunning visuals with exceptional brightness and versatile functionality. Built for fixed installations, it incorporates Elation’s exclusive SparkLED™ system and a powerful zoom range, offering tight mid-air beams or broad, smooth washes—all while standing up to harsh weather with its IP65 rating. Designed for use in architectural installs, outdoor venues, and long-term entertainment environments, this fixture offers unmatched performance in a compact form factor.

Wide Zoom Range for Versatile Lighting Effects
Whether you're aiming for tight beam effects or wide coverage, the Proteus Rayzor 760 OPS delivers with its extensive 5° to 77° zoom range. At 7,200 lumens, this fixture maintains powerful light output across all zoom levels. From concerts and festivals to architectural lighting, the fixture excels in delivering consistent and even wash effects while supporting striking beam projection. It’s ideal for applications requiring flexibility between punchy narrow beams and expansive floods.

Innovative SparkLED System for Eye-Catching Visuals
One of the standout features of the Proteus Rayzor 760 OPS is Elation’s SparkLED™ technology. With 28 high-brightness white LEDs embedded within the fixture’s large front lenses, SparkLED adds a unique layer of visual interest. This patent-pending effect simulates glowing lens faces and can be used independently or in combination with the primary RGBW output. Designers can access internal FX patterns or fully control SparkLEDs via DMX for dynamic pixel effects that add dimension and creativity to any lighting design.

Precision Movement with Continuous Pan and Tilt
This fixture goes beyond static visuals by offering continuous 360° pan and tilt motion. Whether you need slow, deliberate movements or rapid repositioning, the Proteus Rayzor 760 OPS provides variable speed control for smooth and precise transitions. This feature is particularly useful in creating kinetic effects, dynamic sweeps, and captivating visuals across large stages or architectural elements, making the fixture a flexible tool in any lighting rig.

Built to Withstand Outdoor Conditions
Engineered specifically for permanent installations, the Proteus Rayzor 760 OPS includes Elation's CX Extreme Marine Grade Coating and stainless-steel hardware to protect against corrosion, UV, dust, and moisture. The IP65 rating ensures the unit performs reliably in outdoor environments, including coastal or high-humidity areas. All cabling and materials used in the OPS version are built to endure the elements, ensuring long-term performance without compromise.

Seamless Integration and Control Options
The Proteus Rayzor 760 OPS is fully controllable via industry-standard protocols, supporting DMX, RDM, and a range of onboard presets. Its independent pixel control over each of the seven 60W RGBW LEDs and SparkLEDs allows lighting designers to program a wide variety of looks and effects, from bold chases to ambient gradients. The compact housing ensures it can be integrated into tight spaces without sacrificing output or performance.
