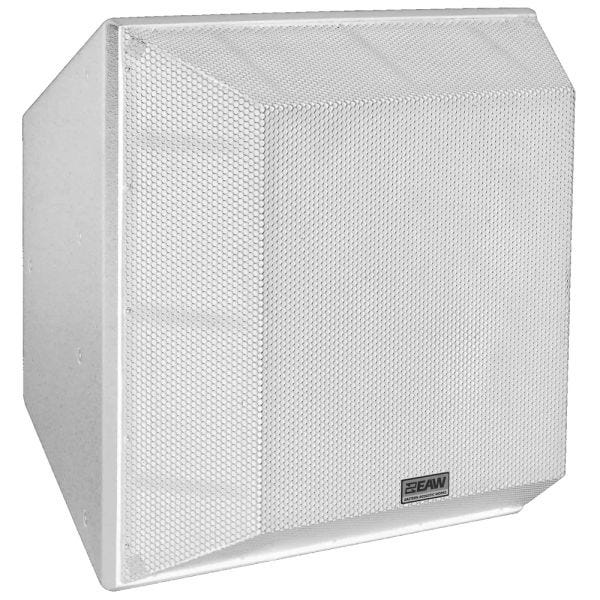

EAW QX594i White - 3-Way Installation Loudspeaker

High-output 3-way loudspeaker for demanding permanent installations
The EAW QX594i WHITE is a powerful passive installation loudspeaker engineered to deliver exceptional output, pattern control, and fidelity in fixed audio systems. With a bi-amplified, three-way design and 1000W power handling, it excels in long-throw applications such as arenas, stadiums, and reverberant architectural spaces like cathedrals and concert halls. This weather-protected white finish version is built for high-performance audio systems that demand both acoustic power and visual discretion.

Precise pattern control with constant directivity horn design
At the core of the QX594i’s performance is its ultra-efficient coaxial mid/high compression driver mounted to a 90° x 45° constant directivity horn. This ensures broad horizontal and focused vertical dispersion, making it ideal for large venues that require even coverage across wide areas. The horn’s controlled directivity helps maintain consistent response in acoustically difficult environments, ensuring speech intelligibility and musical clarity even in reflective spaces.

Phase-aligned low-frequency array for deep, unified response
The low-frequency section of the QX594i features four 12-inch cone transducers arranged in vertical and horizontal pairs. This symmetrical layout surrounds the coaxial mid/high driver to create a cohesive acoustic source that behaves like a single point in space. The phase alignment between the drivers extends pattern control into the low-frequency range and minimizes interference between frequency bands, ensuring consistent tonality and imaging across the entire coverage area.

Three-way bi-amplified configuration for full-range sound
Operating as a true three-way system, the QX594i WHITE separates low, mid, and high frequencies for optimized clarity and power handling. The LF section handles up to 1000W of input power, while the dedicated MF and HF compression drivers deliver focused reproduction in the critical vocal and upper frequency ranges. The system offers an operating bandwidth from 55 Hz to 19 kHz, with axial output limits of 136 dB (LF), 133 dB (MF/HF), and a peak SPL capability of 145 dB—providing ample headroom for high-energy live sound applications.

Rugged construction with weather-protected white finish
Designed for long-term use in challenging environments, the QX594i WHITE features a heavy-duty Baltic Birch plywood enclosure finished with a durable, textured white coating. This makes it ideal for venues that require visual integration into light-colored surroundings. The weather-protected design ensures the speaker can withstand exposure in covered outdoor installations or non-climate-controlled indoor spaces. A powder-coated perforated steel grille provides added protection without compromising sound quality.

Ideal for arenas, performing arts centers, and public spaces
From sports arenas and worship facilities to performing arts venues and dance clubs, the QX594i WHITE provides a scalable, high-performance solution for any installation requiring full-range, high-output audio. Its wide horizontal dispersion, deep throw, and seamless sonic integration make it particularly effective in acoustically complex spaces where conventional speakers fall short.
