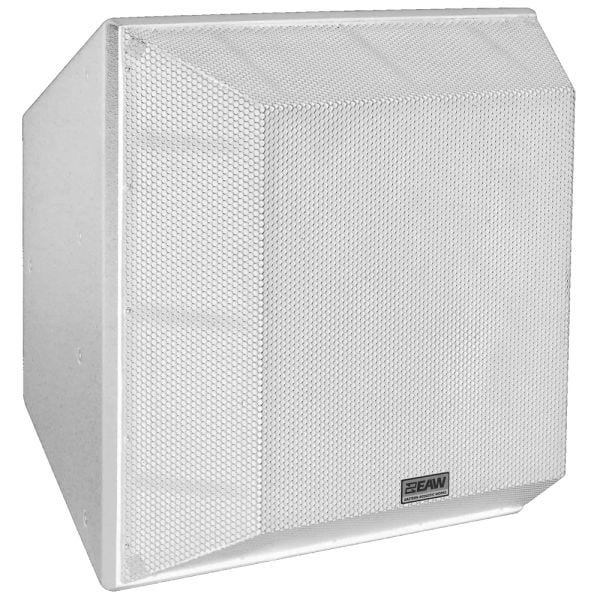

EAW QX566i White 60 x 60 3-Way Full Range Weather Protected Loudspeaker

High-performance 3-way loudspeaker for indoor and outdoor installs
The EAW QX566i-WP WHITE is a weather-protected, high-output, 3-way installation loudspeaker built for environments that demand precise coverage, powerful sound, and long-term durability. With a 1000W power handling capacity and IP64 weather resistance, this full-range loudspeaker is suitable for large venues like stadiums, arenas, churches, and outdoor performance spaces. It offers broad pattern control and superb fidelity, making it equally effective in live music venues and acoustically complex spaces like cathedrals.

Consistent 60° x 60° coverage for wide-area sound distribution
Equipped with a 60° horizontal by 60° vertical constant directivity horn, the QX566i-WP delivers predictable dispersion with tightly controlled output. The ultra-efficient coaxial mid/high compression driver is surrounded by four phase-aligned 12-inch low-frequency transducers arranged in symmetrical horizontal and vertical pairs. This layout extends pattern control deep into the low-frequency range and ensures that all frequency components appear to radiate from a single point, minimizing phase interference and maximizing clarity.

Bi-amplified three-way design for full-range performance
The QX566i-WP WHITE operates in a bi-amped configuration with dedicated transducers for low, mid, and high frequencies. Its four 12-inch LF drivers handle powerful bass output, while the coaxial mid and high-frequency drivers provide exceptional vocal articulation and high-end clarity. With an operating range from 55 Hz to 20 kHz and a maximum SPL of 146 dB, this system supports high-impact reinforcement in large-scale installations requiring clean, powerful reproduction.

Rugged IP64-rated cabinet for weather-resistant installations
Built for long-term reliability, the enclosure is constructed from exterior-grade Baltic Birch plywood and finished in wear-resistant textured white paint. A perforated powder-coated steel grille provides additional physical protection while maintaining acoustic transparency. Its IP64 rating ensures resistance to dust and splashes, making the QX566i-WP WHITE well suited for outdoor stadiums, covered amphitheaters, and other challenging environments where exposure to the elements is a concern.

Optimized for acoustically challenging spaces
The symmetrical transducer layout and constant directivity horn help maintain coherence across the listening field, even in reflective or reverberant environments. Whether you're designing a system for a high-ceilinged sanctuary, echo-prone public atrium, or a stadium concourse, the QX566i-WP WHITE provides precise control of energy dispersion to maintain clarity and speech intelligibility throughout the coverage zone.

Built for long-term use in professional installations
This loudspeaker is engineered to meet the demands of commercial AV integrators, sound designers, and contractors who require robust performance and consistent output over time. With its heavy-duty build, wide frequency response, and consistent beamwidth, it’s ready for integration into any venue that requires premium sound reinforcement with architectural-friendly aesthetics.
