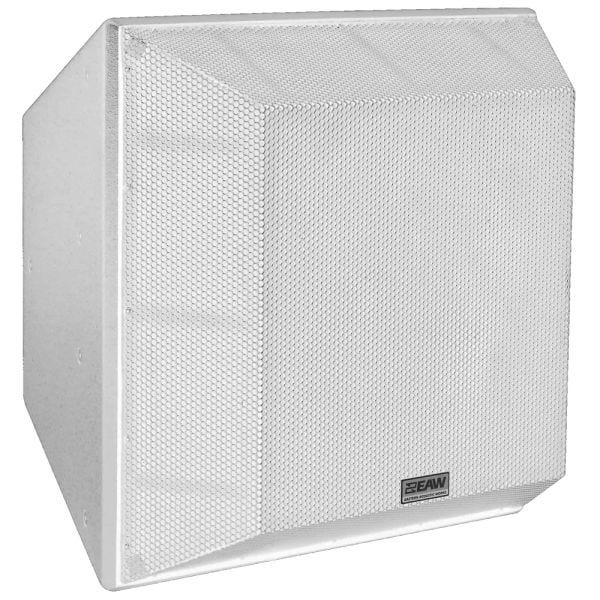

EAW QX564i White 3-Way Installation Loudspeaker (White)

High-performance loudspeaker for fixed installation environments
The EAW QX564i-WP WHITE is a 1000W passive 3-way weather-protected loudspeaker built for demanding permanent installations. Designed for venues requiring powerful long-throw coverage and consistent fidelity, this system delivers detailed sound reproduction and tight pattern control for large indoor or outdoor spaces. Whether installed in a stadium, church, concert hall, or music venue, the QX564i-WP provides exceptional performance and clarity even in the most acoustically difficult environments.

Optimized for controlled coverage in challenging acoustic spaces
Featuring a 60° x 45° constant directivity horn and ultra-efficient coaxial mid/high compression driver, the QX564i-WP WHITE offers broadband pattern control that minimizes reflections and maintains intelligibility in reverberant spaces. Four 12-inch Phase Aligned low-frequency transducers are arranged in vertical and horizontal pairs to maintain consistent off-axis response and extend pattern control into the low-frequency range. This symmetrical layout ensures all frequencies appear to radiate from a single point in space, resulting in coherent sound throughout the coverage area.

Bi-amped three-way system with wide frequency response
The QX564i-WP operates in a bi-amplified three-way configuration, with separate transducers for LF, MF, and HF content. Low frequencies are handled by four 12-inch cones, while a 2-inch exit/3.5-inch compression driver manages midrange, and a 2-inch exit/1.75-inch compression driver delivers high frequencies. The result is a full-range system with a 55 Hz to 19 kHz operating bandwidth, smooth crossover integration, and high output levels capable of peak SPLs up to 147 dB—ideal for high-energy venues and long-throw applications.

Built for durability in permanent and outdoor installations
With its IP64 rating, the QX564i-WP WHITE is fully protected from dust and splashing water, making it suitable for exposed installs in stadiums, arenas, or open-air performance spaces. Its enclosure is built from exterior-grade Baltic Birch plywood and finished in a weather-resistant textured white paint. A powder-coated steel grille protects internal components while maintaining audio transparency. The system weighs 149 lbs and measures 28 x 28 x 23.8 inches, offering a robust solution for applications where performance and long-term durability are critical.

Seamless integration and long-term reliability
The QX564i-WP WHITE is designed for integration into EAW system designs using EAW Resolution software, making it easy to simulate performance and configure optimal system layouts. With a nominal beamwidth of 60° horizontal by 45° vertical, it provides highly controlled coverage, reducing the need for additional fill speakers in many applications. Backed by a 6-year warranty, it offers peace of mind for contractors and system designers seeking a rugged, high-performance solution for fixed installs.
