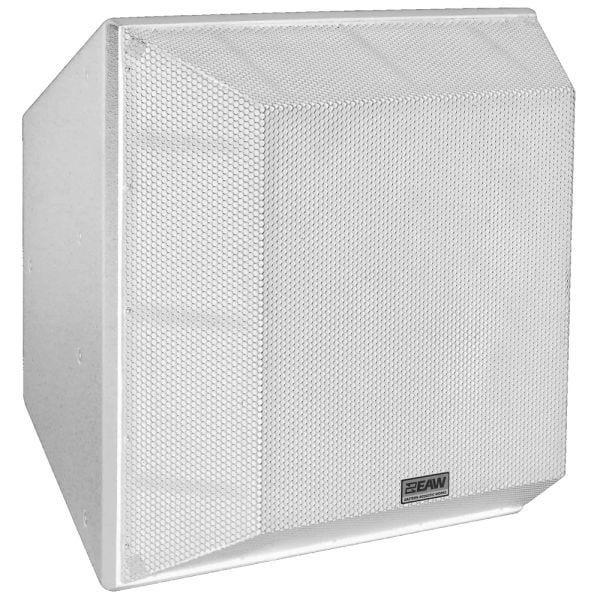

EAW QX396 White 2-Way Installation Loudspeaker (White)

Powerful Two-Way Loudspeaker for Demanding Installs
The EAW QX396 WHITE is a high-performance passive loudspeaker designed for permanent installations where sound clarity, pattern control, and high output are required. With its 1800W power handling and two-way bi-amplified configuration, the QX396 delivers wide-bandwidth performance and pinpoint pattern consistency. It’s built for long throws and demanding acoustic spaces—perfect for arenas, churches, auditoriums, or clubs where speech intelligibility and musical detail are critical.

Precise Pattern Control with Wide Coverage
At the core of the QX396 is a large-format compression driver with a 4-inch voice coil mounted to a 90° x 60° constant directivity horn. This ensures broad, even coverage without drop-offs or hotspots. Four Phase Aligned 10-inch cone transducers are arranged in horizontal and vertical pairs to maintain low-frequency coherence and extend pattern control into the bass region. This symmetrical layout ensures that all frequencies appear to radiate from a single acoustic point.

Flexible Wiring and Amplification Options
This loudspeaker supports both single-amp and bi-amp configurations for installation flexibility. The input plate allows independent access to each LF driver pair, enabling custom series or parallel wiring depending on amplifier capacity and system design. This flexibility is valuable for integrators designing multi-zone or distributed sound systems with varied coverage goals.

Built for Harsh Environments and Longevity
Constructed from exterior-grade Baltic birch and finished in a wear-resistant white coating, the QX396 WHITE blends visually into performance venues and houses of worship. A powder-coated perforated steel grille protects the internals, and an IP64 rating means the loudspeaker is ready for both indoor and outdoor applications. Its rugged build and weather protection ensure dependable use even in tough conditions.

Optimized with EAW Focusing and DSP
The QX396 is designed to be used with external DSP and EAW Focusing technology to achieve time-aligned output and precise phase control across the frequency spectrum. This allows integrators to fine-tune system performance in complex spaces while maintaining musical detail and vocal intelligibility.

Compact Size, Big Performance
Despite its powerful output and full-range capabilities, the QX396 remains compact at just under 24 inches square. Its modest footprint allows for discreet placement in ceiling clusters, wall mounts, or flown arrays, making it ideal for venues needing high performance without the bulk of traditional full-size cabinets.
