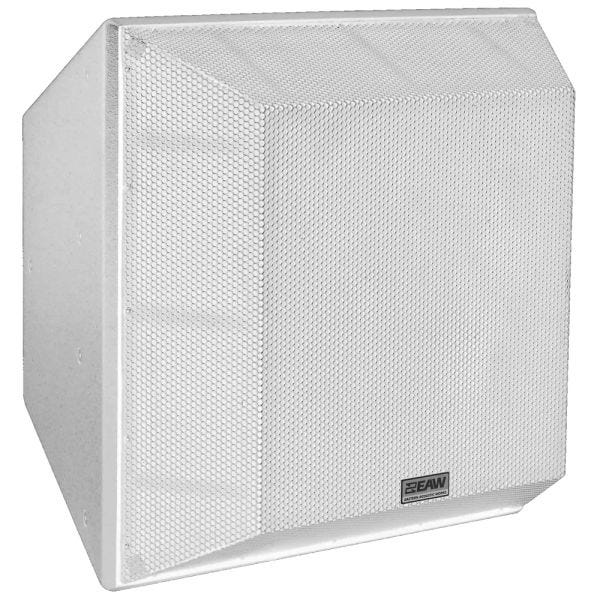

EAW QX326-WP 2-Way Installation Loudspeaker (White)

Compact two-way loudspeaker for high-output installations
The EAW QX326-WP WHITE is a high-performance passive 2-way loudspeaker designed for installations that demand precision, output, and pattern control. With 1800 watts of power handling, this system fits medium-throw applications in arenas, houses of worship, stadiums, and reverberant spaces like auditoriums or cathedrals. Part of the QX300 Series, the QX326-WP WHITE brings the performance of EAW’s larger three-way systems into a more compact enclosure without compromising clarity or projection.

Wide dispersion coverage with phase-aligned design
At the core of the QX326-WP WHITE is a high-frequency compression driver with a 4-inch voice coil and a 120° x 60° constant directivity horn. This wide-dispersion horn—one of six available coverage options—ensures even sound distribution across large horizontal and vertical spaces. The high-frequency driver is surrounded by four 10-inch low-frequency cone transducers, arranged in vertical and horizontal pairs. This Phase Aligned configuration enables broadband pattern control that extends down into the low frequencies, minimizing overlap and improving focus.

Single or bi-amp configuration for system flexibility
The loudspeaker can be configured for single-amp or bi-amp operation, giving integrators full control over amplifier channel usage and tuning. Each woofer pair is wired independently to the input plate, supporting series or parallel connections depending on system requirements. The built-in 70 Hz high-pass filter (12 dB/oct Butterworth) ensures clean integration with subwoofers or other system components, reducing distortion and protecting low-frequency drivers in full-range setups.

Built for permanent and outdoor installations
Engineered for installation-grade reliability, the QX326-WP WHITE features an IP64 weather rating and is constructed from exterior-grade Baltic birch plywood. A textured white paint finish provides a clean, professional look suitable for architecturally sensitive environments. The powder-coated perforated steel grille shields internal components without compromising acoustic performance. With its weather-resistant design, this speaker is well-suited for both indoor and partially exposed outdoor use.

Consistent sound reproduction for professional venues
With a frequency response from 66 Hz to 20 kHz and a peak SPL of 141 dB, the QX326-WP WHITE is ready to handle a wide range of program material. Its 106 dB axial sensitivity (LF/HF) ensures efficient use of amplifier power, while its phase-coherent design provides a seamless listening experience across the venue. Whether it’s speech reinforcement, live music, or multimedia playback, this system delivers consistent, intelligible sound in challenging acoustic environments.
