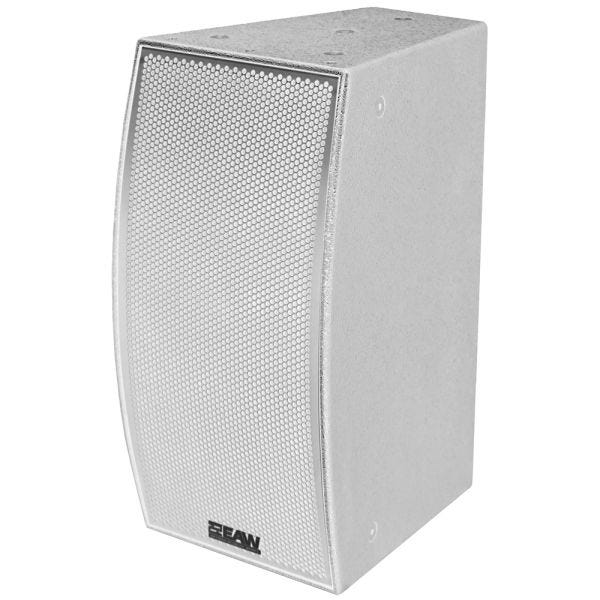

EAW MKD826PL-WP Passive 2-Way Installation Loudspeaker (White)

Professional loudspeaker for high-output installation environments
The EAW MKD826PL-WP WHITE is an 800W passive 2-way loudspeaker built to deliver strong output, precise pattern control, and detailed audio reproduction in a weather-protected format. Ideal for permanent installations in demanding spaces such as stadiums, theaters, clubs, and commercial environments, this loudspeaker combines premium performance with architectural integration. With its dual 8-inch low-frequency cone drivers and a 2-inch voice coil compression driver, it offers full-range clarity with wide dispersion, deep lows, and crisp highs—ready to handle both speech and music content with impact.

Designed for challenging indoor and outdoor applications
Engineered for flexibility and durability, the MKD826PL-WP WHITE is rated for IP56 weather protection, making it suitable for both indoor and outdoor installations. Whether placed in a sports venue, entertainment hall, or outdoor plaza, this speaker delivers reliable performance without compromise. Its custom white finish and gently curved front enable it to visually blend into any architectural setting where aesthetics are a concern.

Wide coverage and consistent performance
The MKD826PL-WP WHITE is designed for broadband pattern control with a nominal beamwidth of 120° horizontal by 60° vertical, ensuring even coverage across wide areas. This design helps reduce hot spots and drop-offs, resulting in a more consistent listening experience for the audience. With a frequency range of 62 Hz to 19 kHz and a peak SPL of 135 dB (12 dB crest factor), it handles high-output needs while maintaining fidelity across the full range.

Advanced transducer and crossover design
This MKD800-series model benefits from EAW's beamwidth-matched crossover technology, allowing the dual 8-inch drivers to operate an octave lower than typical designs. This expands low-frequency output while ensuring a smooth transition to the high-frequency section. The result is a natural-sounding loudspeaker that handles both music and spoken word with clarity and balance. It operates in passive mode, simplifying integration into most distributed audio or zoned PA systems.

Streamlined installation and flexible mounting options
Built from durable Baltic birch plywood, the enclosure supports long-term use in fixed installations. The cabinet includes 12 integrated M10 mounting points, giving installers options for secure vertical or horizontal mounting. Compatible with optional U-brackets and rigging kits, the MKD826PL-WP WHITE adapts easily to the architectural and acoustic needs of a wide variety of venues.
