Dielectric R92309 3-1/8" 90-Degree Elbow w/ Unequal Leg

Introducing the Dielectric R92309 90-Degree Elbow with Unequal Legs

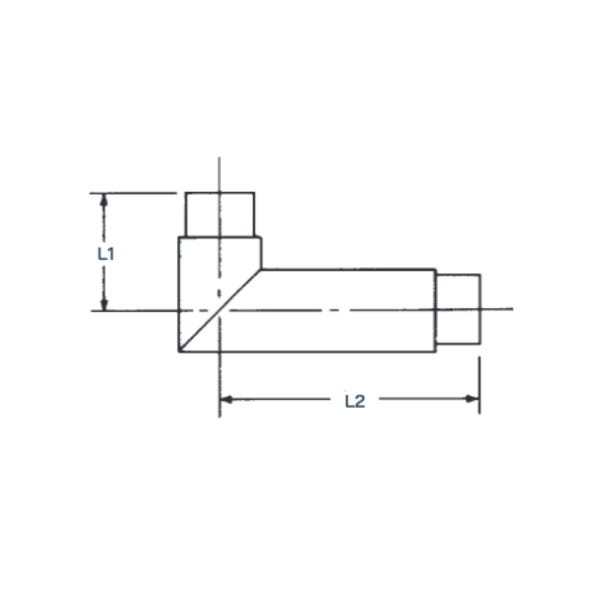

The Dielectric R92309 is a uniquely designed 90-degree elbow that serves a crucial role in telecommunications and broadcasting infrastructure. This component features unequal leg lengths, with the first leg measuring 3.75 inches and the second extending to 8 inches, tailored for installations requiring asymmetrical routing. With a transmission line (T/L) size of 3 1/8 inches and an impedance of 50 Ohms, it is built to ensure seamless integration and optimal signal transmission within a wide array of network configurations.

Optimized Signal Integrity for Professional Applications
Maintaining signal integrity is paramount in professional broadcast and telecommunication systems. The Dielectric R92309 is engineered with a 50 Ohm impedance to match industry standards, thus minimizing signal reflections and attenuation at the bend, which is essential for maintaining the quality and efficiency of the transmission path.

Robust and Practical Design
Weighing approximately 6 lbs, the R92309 is designed to be both durable and practical. Its robust construction ensures it can withstand the environmental stresses of both indoor and outdoor settings, making it a reliable choice for critical network infrastructure. The elbow's design facilitates easy installation and maintenance, enhancing overall system reliability.

Flexible Installation Options
The unequal lengths of the R92309’s legs allow for greater flexibility in system design, accommodating various spatial constraints and enabling more precise directional changes within the network. This adaptability makes it an invaluable component in complex installations where standard elbows cannot meet the specific routing requirements.
