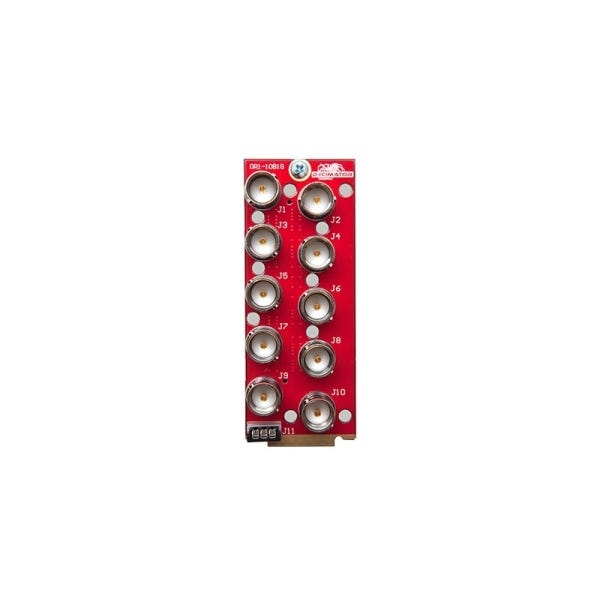

Decimator Design DR1-10B1G Rear Module for openGear Cards

Rear Module Solution for Seamless openGear Integration

The Decimator Design DR1-10B1G Rear Module is designed specifically to provide reliable connectivity for Decimator openGear cards such as the MC-DMON-9S and MC-DMON-QUAD. With ten BNC connectors on the rear panel, this module enables straightforward and secure SDI input and output integration into your openGear infrastructure. It ensures compatibility, reduces cable clutter, and supports optimal signal routing for high-performance multiviewer or processing tasks.

Purpose Built for Decimator openGear Cards

If you're using Decimator's MC-DMON series multiviewers in an openGear frame, this rear module is essential for full functionality. It offers a streamlined connection interface tailored to match the input/output requirements of supported cards. Without it, your multiviewer card cannot provide the expected SDI I/O, which makes this module a necessary pairing for both new builds and replacements in professional environments.

Ten BNC Connectors for Full SDI Support

The DR1-10B1G is equipped with ten BNC connectors, offering flexible configuration for multiple video sources and outputs. These high-quality connectors maintain signal integrity across SD/HD/3G-SDI formats, making them suitable for broadcast-grade applications where timing, resolution, and format support are non-negotiable.

Built for Reliability and Compatibility

Engineered to meet openGear specifications, this rear module fits seamlessly into standard 2RU openGear frames. It’s a hardware match for Decimator multiviewer cards, ensuring users can take advantage of all video monitoring and routing features available through the cards themselves. The secure BNC connections and passive design contribute to long-term reliability with minimal signal loss.

Simplifies SDI Cabling and Workflow Efficiency

By bringing all SDI I/O to the rear of the frame, the DR1-10B1G helps eliminate messy cabling and keeps your installation clean and manageable. Whether you're working in a flypack, a control room, or a mobile broadcast unit, this module supports streamlined setups while maintaining full access to the inputs and outputs your cards require.

Supports High Bandwidth and Signal Integrity

Supporting SDI signals up to 3G, this rear module is well suited for demanding applications like 1080p60 workflows. It allows full-speed data transfer between SDI sources and outputs without compromising video quality. Whether you're monitoring multiple feeds or multiplexing signals, this rear module keeps your SDI signals locked in and latency-free.
