Decimator Design DMON-16SL 16 Channel Multi-Viewer

Turn Any HDMI Screen Into a 16-Channel SDI Multi-Viewer

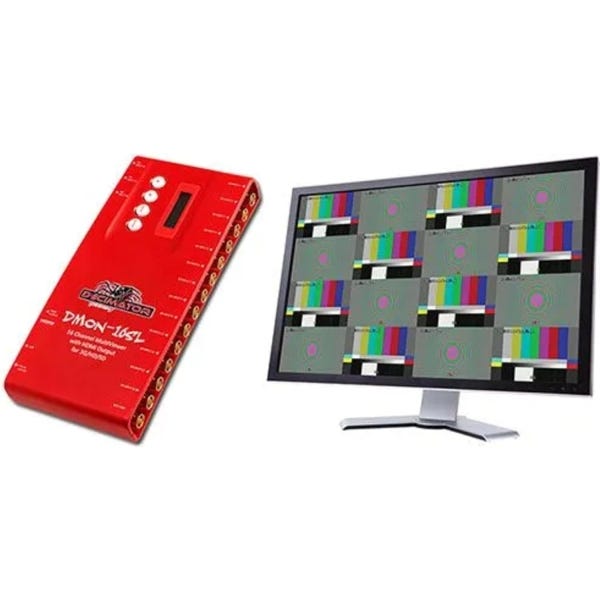

The Decimator Design DMON-16SL is a compact and powerful 16-channel SDI multi-viewer that outputs to a single HDMI display. Built for live production, broadcast control rooms, and OB truck monitoring, it lets you view up to 16 independent SDI sources simultaneously. Each of the 16 inputs supports SD, HD, and 3G-SDI formats and can be displayed in custom arrangements with fully scalable windows. Whether you're managing cameras, playback decks, or production switchers, this unit brings flexible SDI signal monitoring to any HDMI-compatible display.

Mix Formats and Frame Rates Across Independent SDI Inputs
Each of the 16 inputs on the DMON-16SL is completely independent, with automatic signal detection that allows simultaneous display of different resolutions and frame rates. This makes it ideal for dynamic workflows with a variety of source types. You can route signals from cameras running 720p, 1080i, or 3G-SDI and display them all at once without additional converters or synchronization.

Custom Layout Options Let You Define Your Visual Workflow
The DMON-16SL supports both standard and fully customizable layouts. You can resize and reposition each window to suit your monitoring preferences or production environment. Custom overlays such as audio meters and input labels can be toggled on or off. The ability to create, save, and recall layouts adds flexibility for multi-show productions, varying studio setups, or operator-specific preferences.

Switch Between Inputs Quickly Using Full-Screen Mode
When focus is required on a single feed, any of the 16 SDI sources can be switched to a full-screen view. Input switching is fast and responsive, making the DMON-16SL an ideal solution for live event monitoring or applications requiring real-time signal assessment. The pass-through scaling ensures the selected input fills the screen and matches the HDMI display resolution.

Onboard Menu Control With No Computer Required
Unlike traditional converters that rely on DIP switches or LED status lights, the DMON-16SL features an integrated control interface. All adjustments can be made directly from the front panel, with no external software necessary. For those who prefer software control, a USB port is available and compatible with the included control software, allowing changes from a connected computer.

Designed for Professional Applications With Embedded Audio and Low Latency
In addition to video monitoring, the DMON-16SL supports embedded audio metering overlays, giving you basic signal assurance in a single glance. Each input features low-latency buffering, ensuring smooth operation even when video signals are not perfectly synchronized. This makes it a strong choice for demanding production setups where timing and responsiveness matter.

Portable, Rugged, and Ready for Real-World Workflows
Compact enough for flypacks and durable enough for studio integration, the DMON-16SL is built with a metal housing and designed to travel. Whether you're managing camera feeds at a live event or overseeing a studio switcher rack, this device provides dependable, professional-level video monitoring from SDI to HDMI in a streamlined, self-contained unit.
