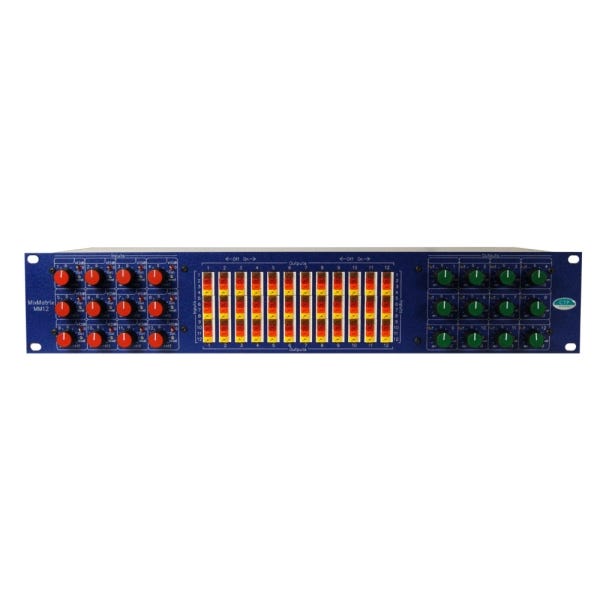

CTP Systems MM12 12 Input/Output 144 Point Cross-Point Mix Matrix Unit

Unmatched Flexibility in Audio Routing
The MM12 stands as a pinnacle of flexibility in audio management, offering a twelve input, twelve output 144 cross-point matrix unit. This advanced system allows for unparalleled control, enabling any combination of inputs to be routed to any outputs. The front panel DIP switch matrix, with its large, easily visible switches, makes managing complex audio routing a breeze.

Enhanced Audio Control and Visibility
With the MM12, gain control and signal monitoring are at your fingertips. Each input and output can be adjusted up to 12dB gain, with an additional 10dB gain available on input switches and output presets, totaling a remarkable 46dB of gain. LED indicators on both inputs and outputs provide immediate visual feedback, glowing green for signal presence and red for clipping, ensuring optimal audio levels at all times.

Convenient and Standardized Connectivity
This matrix unit boasts universal appeal with all system inputs and outputs utilizing standard XLR connectors. This feature ensures easy integration with a wide range of audio equipment, making the MM12 a versatile choice for various audio setups.

Intuitive and Easy-to-Use Interface
The MM12's design prioritizes ease of use. The matrix cross-points, accessible via front panel DIP switches, are organized in a user-friendly layout with inputs as horizontal rows and outputs as vertical rows. This intuitive design simplifies the process of selecting inputs and outputs, enhancing the user experience.

Advanced Input and Output Features
The MM12's inputs and outputs are not just numerous but also sophisticated. Inputs are active with a 10k ohm impedance and offer a gain range of off to +22dB. Outputs, with a 70 ohm impedance, also allow a gain range of off to +12dB. Additional multiturn preset controls provide further fine-tuning, making this unit ideal for both dynamic and fixed installations.
