CTP Systems FW6000 Four Wire Box 6 Input/Output with 1RU Case


CTP Systems FWD1600 Dante Enabled Four Wire Box

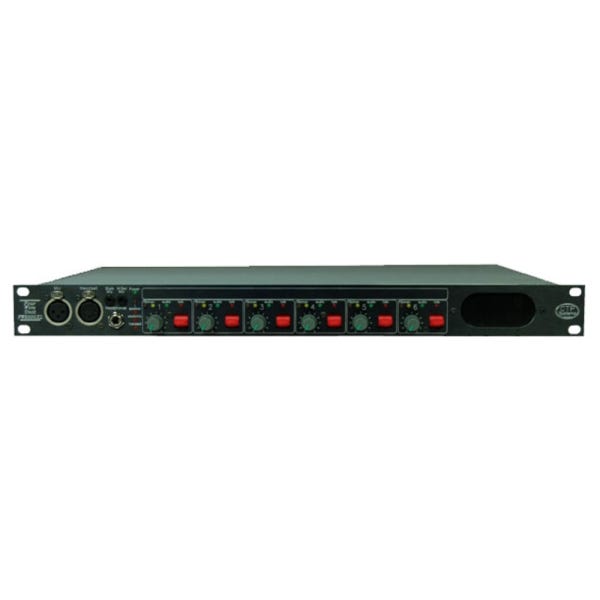

CTP Systems FW6000XL Four Wire Box 6 Input/Output with Four Additional IFB Inputs

Home Intercom CTP Systems FW6000XL Four Wire Box 6 Input/Output with Four Additional IFB Inputs
$2,912.00

Six Input / Six Output Four Wire Box, Momentary and Latching Key Functions, LED Indication, Four-Wire Inputs Switchable to IFB Interrupt Feeds, Four Additional IFB Interrupt Inputs, Aux D9 for Footswitch, Compatible with A and B Gauge Headphone Jacks, Ideal for a Variety of Audio Environments

Availability: Special Order, Please Allow 2-4 Weeks For Delivery
SKU
FW6000XL
Add to Wish List Add to Compare

Features

  • Additional Four IFB Interrupt Inputs
  • Selectable Volume Control for Each Channel
  • 1RU Case, 300mm Deep
  • Six Inputs and Six Outputs
  • Keys with Latching and Momentary Functions
  • Rear Panel Key Latch Disable Option
  • Audio Present LEDs for Each Channel
  • Talk LED Indication
  • Separate Adjustable Mic Amps for Headset and Stalk Mic
  • Speaker, Stalk Mic, and Headset Switching
  • Four-Wire Inputs Switchable to IFB Interrupt Feeds
  • IFB Monitoring via DIP Switches
  • Hot Line Level Microphone Output
  • Aux D9 for Footswitch Channel Operation
  • Compatible with A and B Gauge Headphone Jacks
  • Transformers on All Inputs and Outputs

Enhanced Audio Control with FW6000XL
The FW6000XL takes the capabilities of the FW6000 to new heights, offering advanced audio control for professionals. This unit stands out with its additional four IFB interrupt inputs, which can be assigned to any or all of the unit's four-wire outputs. Housed in a 1RU case that's 300mm deep, it's the perfect blend of functionality and space efficiency.

Versatile Channel Management
Each channel on the FW6000XL offers enhanced control. The volume for each channel can be adjusted via front panel push buttons, allowing users to switch between the channel's four-wire input or the Interrupt input. This flexibility is crucial for environments where quick and precise audio adjustments are needed.

User-Friendly Interface and Indicators
The FW6000XL is designed with the user in mind. It features keys that can be latched up or used momentarily when pressed down. The rear panel key latch can be disabled for enhanced control. Additionally, audio present LEDs on each channel and talk LED indications provide clear visual feedback, making it easier to monitor and adjust settings.

Advanced Microphone and Speaker Options
Separate microphone amplifiers with adjustable gain for both headset and stalk mics ensure versatile and high-quality audio output. The unit also offers speaker/stalk mic/headset select switching, adding to its comprehensive functionality.

IFB Integration and Monitoring
The four-wire inputs can be switched to operate as IFB interrupt feeds, with DIP switches enabling IFB monitoring. This feature allows for seamless integration of IFB systems, essential in broadcast and live event production.

High-Quality Audio Output and Compatibility
The FW6000XL includes a hot line level microphone output and an Aux D9 for footswitch operation of all channels. The headphone socket is compatible with both A and B gauge jacks, ensuring wide compatibility. Transformers on all inputs and outputs guarantee high-quality audio transmission.

More Information
MPN FW6000XL
Color Black
Brand CTP Systems
Product Condition New
Availability Out of Stock
