CTP Systems DIO0808MA-XLR Dante Enabled Interface Unit

Revolutionary Dante Interface with the DIO0808MA-XLR

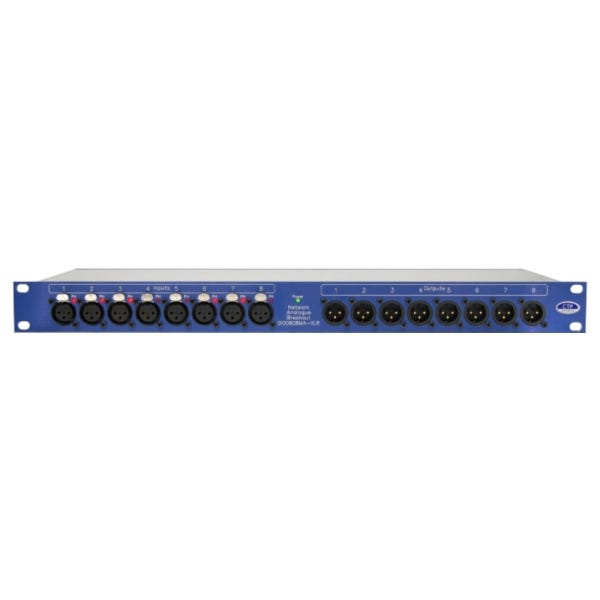

Introducing the DIO0808MA-XLR, a Dante-enabled interface unit that seamlessly converts eight analogue microphone or line level inputs into Dante streams. This innovative device also transforms Dante streams into eight line level analogue outputs, making it a versatile solution for various audio setups.

Advanced Input and Output Control
Each microphone/line level input on the DIO0808MA-XLR boasts adjustable gain ranging from +65dB to -12dB, while the analogue outputs can be adjusted from +12dB to -12dB. This range of control ensures optimal audio quality for both inputs and outputs, catering to a wide array of audio requirements.

Phantom Power and PoE Capability
The unit allows for the selection of phantom power to each microphone input, enhancing its compatibility with a variety of microphones. Additionally, the DIO0808MA-XLR is PoE (Power over Ethernet) enabled, offering the convenience of operation without a mains supply.

User-Friendly Web Server Interface
All level control and phantom power switching are easily adjusted using the unit's built-in web server. This user-friendly interface simplifies the configuration process, making it accessible even for those with limited technical expertise.

High-Quality Audio and Network Performance
Operating at sample rates of 44.1kHz, 48kHz, or 96kHz, the DIO0808MA-XLR ensures high-quality audio performance. It also operates in AES67 mode for added versatility. The unit's built-in network switch can function as a standard switch or with redundant inputs for a backup network, ensuring reliable network connectivity.

Applications in Professional Audio Environments
This Dante interface is perfect for recording studios, live sound setups, and broadcasting environments. Its ability to handle multiple audio formats and provide precise control makes it an essential tool for audio engineers and technicians in various professional settings.
