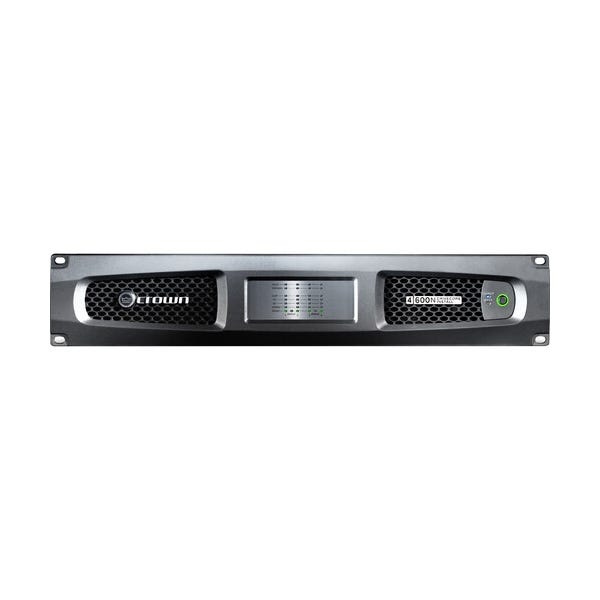

Crown DCi4x600N 4x600W Power Amplifier

Crown DCi4x600N 4x600W Power Amplifier Overview

The Crown DCi4x600N is a powerful and versatile 4-channel amplifier engineered to meet the demands of complex, high-performance audio systems. Designed for system integrators working with large-scale commercial and professional sound applications, this amplifier offers 600W of output per channel at 4 ohms. Built on Crown's renowned DriveCore technology, the DCi4x600N provides exceptional efficiency, audio clarity, and reliability. Its compact 2RU form factor and comprehensive feature set make it ideal for audio installations in venues such as stadiums, theaters, houses of worship, and corporate facilities.

Versatile Inputs and Output Configurations

The DCi4x600N excels in versatility, supporting both analog and digital inputs. It integrates seamlessly with Harman’s BLU Link digital audio transport system, allowing for high-quality, networked audio over RJ-45 connectors. The amplifier also offers selectable outputs for different speaker loads, with channel-independent high- or low-impedance output options. Whether you are working with 70V, 100V, or low-impedance speakers (2, 4, 8, or 16 ohms), the DCi4x600N delivers reliable power and performance to meet a wide range of installation needs.

Integrated DSP for Custom Audio Control

The built-in digital signal processing (DSP) in the DCi4x600N offers advanced audio control and customization. Key DSP features include LevelMAX limiters, input/output equalization (EQ), delay management, crossover settings, and a matrix mixer. These tools provide audio professionals with precise control over frequency response and signal routing, allowing for an optimized sound profile in any environment. Speaker line monitoring is also available, ensuring that any potential issues with connected speakers can be detected early, preventing costly damage.

Flexible Output Power and System Monitoring

With up to 600W per channel at 4 ohms, the Crown DCi4x600N is equipped to handle high-power applications. It supports bridgeable channels, which is perfect for powering demanding speakers like subwoofers. The amplifier also features extensive monitoring capabilities through the HiQnet protocol, which allows for remote system monitoring and control over a TCP/IP network. With HiQnet’s Audio Architect software and the Powered by Crown app, users can remotely monitor the performance of all networked amplifiers, check system statuses, and make adjustments as necessary. This feature is invaluable for system integrators managing large installations or seeking to troubleshoot from a distance.

Advanced Protection Features for Maximum Reliability

The DCi4x600N comes with multiple protection circuits to safeguard the amplifier and connected equipment. These protections include safeguards against shorted outputs, overheating, DC faults, mismatched loads, and high-frequency overloads. The amplifier features an efficient cooling system to ensure that critical components remain at optimal operating temperatures, even during high-demand usage. Additionally, the amplifier’s TLC (Thermal Load Control) protection automatically reduces gain when necessary to prevent overheating, extending the life of the unit and ensuring reliability over time.

Energy Efficiency and Remote Control

In addition to its high-performance audio capabilities, the DCi4x600N also incorporates energy-saving features such as an auto standby function. If there is no input signal for 30 minutes, the amplifier automatically goes into sleep mode, reducing power consumption. The amplifier can also be integrated into a remote control system, enabling remote on/off control and saving energy during off-hours. With these features, the DCi4x600N is as efficient as it is powerful, making it a smart choice for environmentally-conscious installations.
