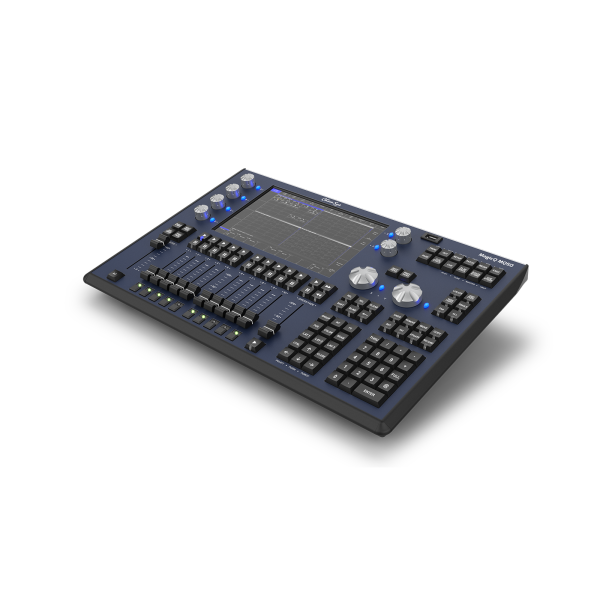

ChamSys MagicQ MQ50 8-Universe Compact Lighting Console
was
$7,225.00
Special Price
$6,500.00
8-Universe Compact Lighting Console with MagicQ Software; 3072 Channels; 10.1" Multi-Touch Display, Wi-Fi; RDM Support Via DMX Ports and Network
Availability:
In Stock
SKU
CHAMMQ50
Features:
- 8 universes direct from the console
- High resolution 10.1" multi touch display
- In built WiFi for quick connection to MagicQ Remote App
- RDM support via direct DMX Ports and Network
- Silent operation, ideal for theatres
MagicQ MQ50 is part of the new generation of compact consoles, ideal for small to medium sized venues. The MQ50 features a 10.1” Multi touch display and ten full Cue Stack playbacks in a compact format.
The console supports 8 universes, with 4 assignable physical DMX outputs supporting RDM and a network port for ArtNet and sACN output. This feature packed console also includes WIFI inbuilt to the console for quick and easy connection to ChamSys MagicQ Remote focus application without the need for external networking hardware or any networking knowledge.
MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.
| MPN | CHAMMQ50 |
|---|---|
| UPC / EAN | 781462220013 |
| Brand | ChamSys |
| Product Condition | New |
| Availability | In Stock |
Hardware Specifications:
- Universes direct from the console (via Artnet/sACN/Pathport): 8
- Direct DMX Outputs: 4
- RDM Support: Yes
- In-built WiFi: Yes
- Playbacks: 10
- Grand Master Fader: 1
- Crossfade Master Fader: 1
- Attribute Encoders: 8
- Network Ports: 1
- Inbuilt 10.1" HD Multi-Touch Display: 1
- External Monitor up to 1920x1200 Resolution - HDMI: 1
- USB Ports: 5
- Audio Input (1 channel, 7 band): Yes
- Audio Output: Yes
- MIDI Ports: 1 in, 1 out (Notes Only)
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
- Max Number of DMX Channels: 4096
- Max Number of Fixtures Supported: 4096
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Numbers of Shows: Virtually unlimited
- Timecode Support (Midi, LTC, Virtual, USB): No
Included Accessories:
- Dual Colour Desk light: 1
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
Boxed Weights and Dimensions:
- Width: 680mm (26.7 inches)
- Depth: 290mm (11.4 inches)
- Height: 500mm (19.6 inches)
- Weight: 10kg (22 lb)
Flight Cased Weights and Dimensions:
- Width: 600mm (23.6 inches)
- Depth: 202mm (7.95 inches)
- Height: 421mm (16.5 inches)
- Weight (console in flightcase): 17kg (37.4 lb)
Console Weights and Dimensions:
- Width: 525mm (20.6 inches)
- Depth: 350mm (13.7 inches)
- Height: 60mm (2.3 inches)
- Weight: 7kg (15.4lb)
