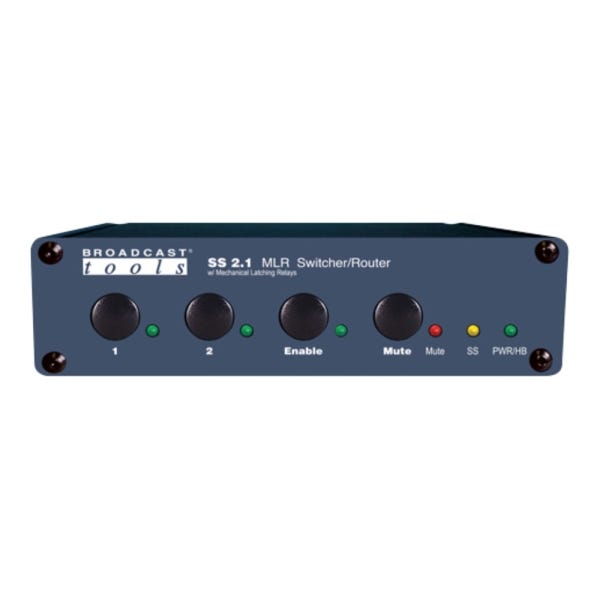

Broadcast Tools SS 2.1 MLR/BNC BNC Switcher/Router
$369.00
A Transparent Two Input, Two Output Switcher/Router with Mechanical Latching Relays and BNC Connectors, Ideal for Applications such as, Composite Stereo Audio/MPX Switching, NTSC Video Signal Switching, Audio Processing Selection, Exciter Input Selection, and STL Source Selection
Availability:
In Stock
SKU
SS 2.1 MLR-BNC
Features
- Front Panel Channel Selection with LED Indicators
- Audio Mute Function
- Configurable Front Panel Enable Switch for Safety Lock
- Remote Control via Contact Closures, TTL/CMOS Logic, or RS-232
- Two SPDT Relay Outputs for Remote Channel Status
- Mechanical Latching Sealed Relays for Audio/Signal Switching
- BNC Connectors for Audio/Signal I/O, Euro-Block Screw Terminals for Remote Control
- Power-Up Source Selection Feature
- Retains Last Selected Channel if Power is Lost
- Fully RFI Proofed
- Surge Protected Internal Power Supply
- Optional RA-1 Rack Shelf for Mounting up to Three Units
Highly Versatile Signal Switching Solution
The SS 2.1 MLR/BNC is a transparent, dual-input, dual-output switcher/router, equipped with mechanical latching relays and BNC connectors. This device is expertly designed for efficient composite/MPX or other passive signal switching, making it a versatile tool for various audio and video applications.
Reliable and Flexible Switching Mechanism
The switching in the SS 2.1 MLR/BNC is achieved through mechanical latching gold contact relays, allowing signal routing in either direction. The passive nature of the switching means it can accommodate any input level and impedance. Whether the inputs are balanced or unbalanced, the output levels, impedance, distortion, noise, and balancing will precisely match the selected input.
User-Friendly Control and Monitoring
Control and monitoring of the SS 2.1 MLR/BNC are straightforward and adaptable. It can be operated locally or via simple contact closures to ground, as well as through multi-drop RS-232 serial commands. This flexibility ensures that the device can be integrated into a variety of setups with ease.
Applications and Potential Uses
The SS 2.1 MLR/BNC is ideal for applications requiring reliable signal switching, such as composite stereo audio/MPX switching, NTSC video signal switching, audio processing selection, exciter input selection, and STL source selection. Its versatility makes it suitable for broadcast studios, live event production, and other professional audio/video environments.
| MPN | SS 2.1 MLR/BNC |
|---|---|
| Color | Blue |
| Brand | Broadcast Tools |
| Product Condition | New |
| Availability | In Stock |
