Broadcast Tools RJ XLR 16F RJ45 to XLR Breakout Panel

Efficient Audio Conversion in a Compact Form

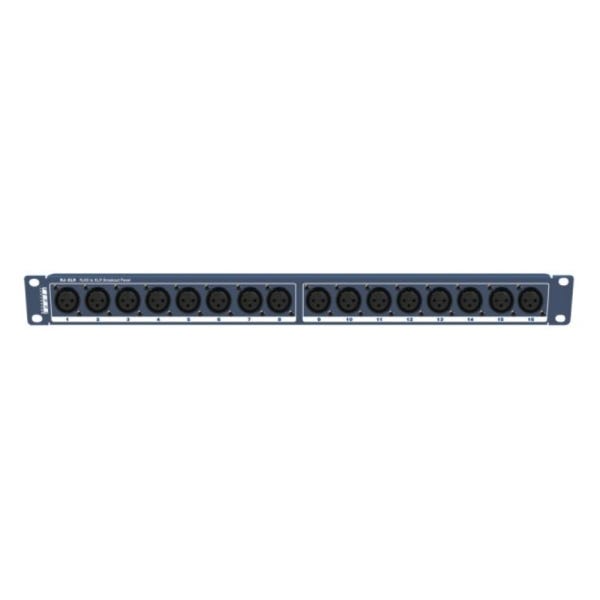

The RJ-XLR 16F is a cutting-edge 1RU 19” rack breakout panel, expertly designed to convert 16 female XLR jacks to RJ45 audio jacks. This innovative panel utilizes the standard Cat5 audio pinout, making it a perfect solution for modern audio setups that require efficient and reliable conversion.

Versatile Stereo and Mono/AES Operations
This breakout panel is not just about conversion; it's about versatility. The XLR jacks are ingeniously paired to feed stereo audio to a stereo RJ45 jack. Additionally, they split out to two separate RJ45 jacks for mono/AES operation. This design offers a total of 8 stereo RJ45 jacks and 16 mono/AES RJ45 jacks, catering to a wide range of audio requirements.

Advanced Audio Routing Capabilities
The RJ-XLR 16F ensures that your audio is routed precisely where it needs to go. Audio input into XLR jack #1 is available on the left channel of the “Stereo 1/2” RJ45 jack, as well as the left/AES channel of the “AES 1” RJ45 jack. Similarly, audio fed into XLR jack #2 is accessible on the right channel of the “Stereo 1/2” RJ45 jack and the left/AES channel of the “AES 2” RJ45 jack, ensuring seamless audio distribution.

Applications and Potential Uses
The RJ-XLR 16F is an essential tool for audio professionals in broadcasting, live sound, and studio recording. Whether you're managing complex audio setups in a broadcast studio, setting up sound for a live event, or recording in a studio, this breakout panel simplifies your workflow and ensures high-quality audio conversion and distribution.
