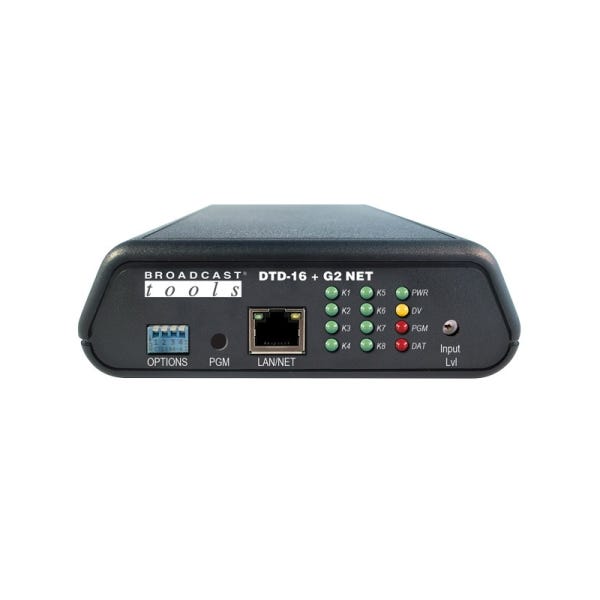

Home Codecs Broadcast Tools DTD-16 Plus G2 NET DTMF Decoder w/ Relay Outputs, USB/Serial/Ethernet
$399.00

DTMF Tone/Sequence Decoder, User-Programmable to Decode Single Tones or Sequences up to Six Tones in Length, Decodes All 16 DTMF Tones, 8 SPST Relay Outputs and 8 Open Collector Outputs, Indispensable Tool for Telecommunications, Broadcasting, and Security Systems

Availability: In Stock
SKU
DTD-16 Plus G2 NET
Add to Wish List Add to Compare

Features

  • Decodes All 16 DTMF Tones or User-Programmed Tone Sequences
  • Front Panel Tone Audio Input Level Control (-20 to +24dbu)
  • Adjustable Tone Detection Time
  • 8 SPST Relay Outputs and 8 Open Collector Outputs
  • Front Panel LED Indicators for Relay Status, Power, Tone Activity, and Programming
  • Programmable via USB, RS-232 Serial, or Ethernet (TCP/UDP Socket) Connection
  • Mode Configuration via Front Panel Dip-Switches
  • Euro-Block Screw Terminal Connectors for Easy Wiring
  • Fully RFI Proofed Design
  • Surge Protected Power Supply with Domestic Adapter Included
  • RA-1 Rack Shelf Compatibility for Mounting Options

Revolutionize Tone Decoding with DTD-16 + G2 NET
Introducing the DTD-16 + G2 NET, a state-of-the-art DTMF tone/sequence decoder that offers unparalleled flexibility and control. This device is user-programmable to decode single tones or sequences up to six tones in length, making it an indispensable tool for telecommunications, broadcasting, and security systems.

Versatile Output Options and Advanced Programming
The DTD-16 + G2 NET allows for assignment of decoded tones to any one of eight SPST normally open relays, eight open collectors, and USB/RS-232 serial/Ethernet ports. Its outputs can be programmed for various responses, including closing for the tone duration, pulsing after detection, waiting a programmed time, or latching/unlatching, providing tailored solutions for different audio scenarios.

User-Friendly Interface for Efficient Operation
Programming the DTD-16 + G2 NET is straightforward and can be done using a PC’s USB, RS-232 serial, or Ethernet port with a terminal program like HyperTerminal, Tera Term, or PuTTY. This ease of programming makes it accessible for professionals of all skill levels.

More Information
MPN DTD-16 Plus G2 NET
Color Black
Brand Broadcast Tools
Product Condition New
Availability In Stock
