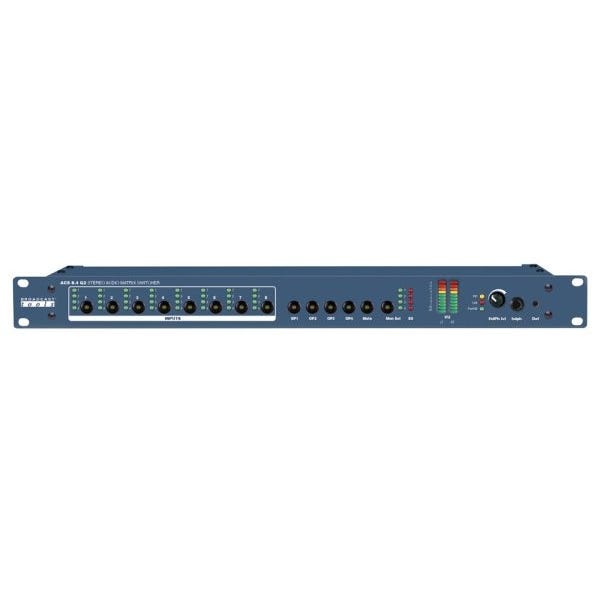

Broadcast Tools ACS 8.4 G2 8_4 Balanced Analog Stereo Matrix Audio Switcher

Efficient and Flexible Audio Switching with the Broadcast Tools ACS 8.4 G2 The Broadcast Tools ACS 8.4 G2 is a versatile 8x4 balanced analog stereo matrix audio switcher, designed to meet the demands of professional audio environments. This powerful switcher allows seamless routing of 8 stereo inputs to 4 stereo outputs, making it an essential tool for broadcasters, studios, and audio engineers looking to streamline their audio management.

Comprehensive Control Options With multiple control options, the ACS 8.4 G2 offers unparalleled flexibility. Control your audio routing through front panel push-button controls, contact closures, open collectors, logic, multi-drop RS-232 serial, and TCP/UDP Ethernet commands. This wide range of control methods ensures that the switcher integrates smoothly into any setup, providing easy access and precise control over your audio channels.

User-Friendly Design The ACS 8.4 G2 is designed with user convenience in mind. It features front panel push buttons for quick input to output channel selection, and a 16-input “PIP” (GPI/Triggers) port with a front panel LED indicator for remote control. The inclusion of RJ45 audio jacks for input and output connections and plug-in euroblock screw terminal connectors simplifies installation and expands connectivity options, making the setup process straightforward and hassle-free.

Advanced Audio Monitoring and Alarm Systems This switcher is equipped with internal silence sensors that monitor each output, providing front panel LED silence indicators and silence alarm relay outputs. Users can configure trip levels, silence delays, and restore duration timings to ensure continuous and reliable audio monitoring. Additionally, the front panel stereo LED VU meters and stereo headphone output with a level control allow for precise output monitoring.

Flexible Audio Switching Modes The ACS 8.4 G2 offers three audio switching modes: interlock, overlap, and mix, catering to various audio routing needs. This flexibility ensures that the switcher can handle different scenarios, whether you need to switch audio channels cleanly, mix them, or manage overlapping signals. This versatility makes the ACS 8.4 G2 a robust solution for dynamic audio environments.

Robust and Reliable Performance Built with durability in mind, the ACS 8.4 G2 features electronically balanced stereo inputs and outputs with low noise, low distortion circuitry. Rear panel multi-turn input level trimmers and internal single-turn output level controls provide precise audio adjustments. The unit is housed in a 1-RU 19” rack chassis, fully RFI proofed to ensure reliable performance in various operational settings.
