Blaze Audio PowerZone Connect 508 DSP-Enabled Class-D 500W Amplifier with 8 Channels

Unleash Powerful Audio Performance with the Blaze Audio PowerZone Connect 508

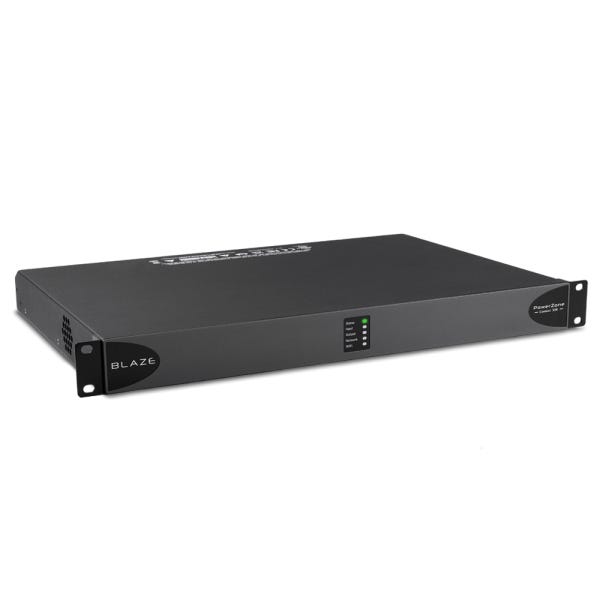

The Blaze Audio PowerZone Connect 508 is a 500W, DSP-enabled Class-D amplifier designed for high-output performance while maintaining efficiency in compact installations. This 1U form factor amplifier is part of the PowerZone™ Connect series, making it the ideal solution for audio and voice installations where space is limited, but high performance is still required. With its versatile output capabilities and user-friendly features, the PowerZone Connect 508 allows system installers to easily integrate both low-impedance (4 Ω to 16 Ω) and high-impedance (70 V/100 V) loudspeakers, providing a customizable solution for various sound systems. Whether you're outfitting a commercial space or a smaller venue, this amplifier ensures maximum sound quality and reliability.

Compact and Powerful Design
The PowerZone Connect 508's 1U form factor delivers the perfect balance between power and size. Despite its compact design, it provides 500W of output, making it an efficient solution for applications where rack space is limited but high-output sound is still a necessity. This makes it an excellent choice for installations where rack space must be optimized without sacrificing performance. The ability to house such powerful audio equipment in a small, space-saving design allows for clean, organized setups in tight spaces like conference rooms, audio control centers, and live sound applications.

Hybrid Power Distribution for Versatile Sound Systems
The PowerZone Connect 508 features hybrid power distribution, offering support for both low-impedance (Lo-Z) and high-impedance (Hi-Z) loudspeakers. This hybrid distribution ensures that users can easily configure their system to meet the specific needs of different environments, whether you're using conventional loudspeakers or transformer-coupled, constant voltage speakers for larger venues. The amplifier provides proportional power-sharing in both modes, allowing for seamless integration into diverse sound setups. This versatility is ideal for audio systems that require a reliable, high-performance amplifier that adapts to various speaker configurations.

Advanced DSP Configuration and Customization
One of the standout features of the PowerZone Connect 508 is its built-in DSP capabilities, which can be fully configured via the PowerZone™ Control web app. The intuitive app allows installers to access and customize multiple DSP settings, providing complete control over your system’s audio performance. Features like input and output EQ, speaker presets, delay adjustment, multizone setup, and high-pass filters are all available for easy fine-tuning. The web app also supports advanced options such as priority and ducking, input mixing, S/PDIF routing, and more, giving you the flexibility to tailor the system to your exact needs.

Energy-Efficient and Compliant Design
In addition to its performance capabilities, the PowerZone Connect 508 is built with energy efficiency in mind. Powered by Pascal UMAC™ Class-D technology, this amplifier offers exceptional efficiency, ensuring that power is used effectively while minimizing waste. The UREC™ universal power supply with Power Factor Correction (PFC) ensures stable performance even in fluctuating power conditions. The amplifier is also ErP and Energy Star compliant, making it an environmentally responsible choice for installations that prioritize sustainability.

Reliable and Durable for Long-Term Use
Built to last, the PowerZone Connect 508 is UL listed, ensuring it meets high safety and quality standards. The amplifier is designed for long-term reliability, making it an excellent investment for both permanent and temporary installations. Whether you're using it in a high-demand commercial setting or a smaller audio setup, the PowerZone Connect 508 is built to perform consistently and withstand the rigors of daily use. Backed by a 5-year warranty, this amplifier provides peace of mind knowing that it is a reliable part of your audio system.
