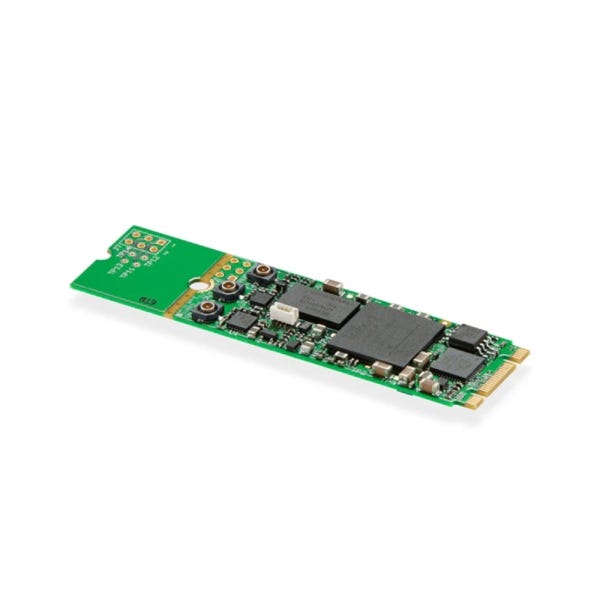

Blackmagic Design BMD-BDLKMICROSDI DeckLink SDI Micro

Compact M.2 Capture and Playback Card for SDI Workflows
The Blackmagic Design DeckLink SDI Micro is an ultra-small, high-performance M.2 video interface designed for professional SDI capture and playback in embedded and compact computing environments. Built for developers, integrators, and system designers, this tiny card delivers full SD and HD support up to 1080p60 using 3G‑SDI connections. With simultaneous input and output capabilities, it’s the ideal solution for building portable recorders, routers, monitoring systems, and miniaturized production tools.

Simultaneous SDI Input and Output in a Single M.2 Design
This miniature card supports one channel of 3G‑SDI input and one channel of 3G‑SDI output simultaneously, enabling real-time capture and playback in broadcast-quality formats. Whether you're designing a compact streaming box, ingest workstation, or on-location capture system, the DeckLink SDI Micro offers reliable SDI I/O without the bulk of standard PCIe form factors.

Supports All Standard-Definition and High-Definition Formats up to 1080p60
Engineered for versatility, the DeckLink SDI Micro is compatible with all SD and HD video formats, including NTSC, PAL, 720p, 1080i, and 1080p up to 60 frames per second. This makes it perfect for applications in live video switching, graphics systems, medical imaging, and more. Its support for broadcast standards ensures seamless integration into professional production pipelines.

M.2 Form Factor Enables Integration into Compact Custom Builds
The M.2 card format allows this device to be installed directly into compatible motherboards in tight spaces, making it ideal for use in portable, rack-mounted, or embedded systems. Whether you're building a lightweight field recorder or a compact ingest workstation, the DeckLink SDI Micro delivers pro-grade SDI connectivity in a board that's smaller than a credit card.

Reference Input for Broadcast Synchronization
To ensure frame-accurate performance and smooth integration with broadcast infrastructure, the DeckLink SDI Micro includes a reference input supporting both Black Burst and Tri-Sync signals. This allows your system to stay locked to external sources and operate in a genlocked environment, critical for multi-camera productions and timing-sensitive workflows.

Designed for Developers and System Builders
Built with the OEM market in mind, this card provides a powerful and flexible foundation for custom video capture and playback products. It is fully supported by Blackmagic's SDK, allowing developers to create tightly integrated solutions for live production, streaming, post, and content delivery systems.
