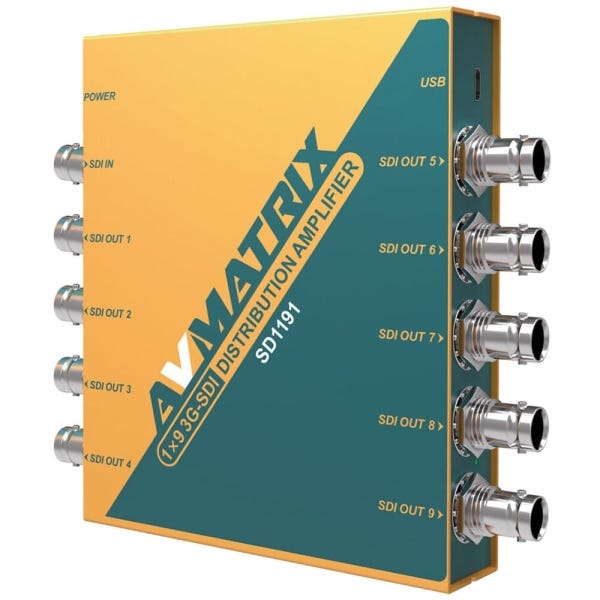

Home Distribution Amplifiers AVMATRIX SD1191 1x9 3G-SDI Reclocking Distribution Amplifier
$169.00
3G/HD/SD-SDI input and 9 buffered and reclocked outputs all supporting DVB-ASI signals
Availability: In Stock
SKU
SD1191

Features:

  • 3G/HD/SD-SDI input and 9 reclocked outputs with DVB-ASI signal compatibility
  • Superior color depths with RGB and YUV support
  • Employs automatic cable equalization and signal retiming
  • All-inclusive data transfer to outputs
  • LED indicators for instant power and signal lock status
  • Secure threaded locking power connector for stability

Amp Up Your Signals with Precision
Introducing the 1x9 3G-SDI Reclocking Distribution Amplifier by AVMATRIX—precision and reliability sculpted in a compact, all-metal body. Whether wall-mounted or attached under your desktop, it's designed to fit seamlessly within any setup.

Distance No Longer a Constraint
Say goodbye to short cable limitations. This device boasts cable equalization capacities reaching 394' for 3G-SDI signals, an impressive 656' for HD-SDI, and a whopping 1312' for SD-SDI. Now, stretch those cables without fretting over signal integrity.

Revitalize Your Signals
Thanks to the automatic reclocking and equalization, your input signal experiences rejuvenation. The process efficiently reduces jitter, amplifying the SDI eye pattern, thus paving the way for extended cable runs.

Auto-Detection and High-Resolution Outputs
Simplicity at its best—the single input smartly auto-detects 3G/HD/SD signals. What you get in return are nine automatically buffered, reclocked outputs radiating in up to a vibrant 1080p60 resolution. Plus, a nod to DVB-ASI compatibility across all channels.

Vivid Color Depth
Revel in deep and vibrant colors with support for RGB 4:4:4 10-bit/12-bit and YUV 4:2:2/4:4:4 10-bit/12-bit. This device ensures that every shade and nuance is captured and relayed perfectly.

Efficient Data Transmission
Trust in the assurance that all ancillary data finds its way to the outputs, maintaining the integrity of your signal source.

User-Centric Features
User experience is enhanced with LED indicators signaling power and signal lock, ensuring you're always informed. Additionally, the threaded locking power connector provides an added layer of security.

More Information
MPN SD1191
UPC / EAN 738626751371
Brand AVMatrix
Product Condition New
Availability In Stock
