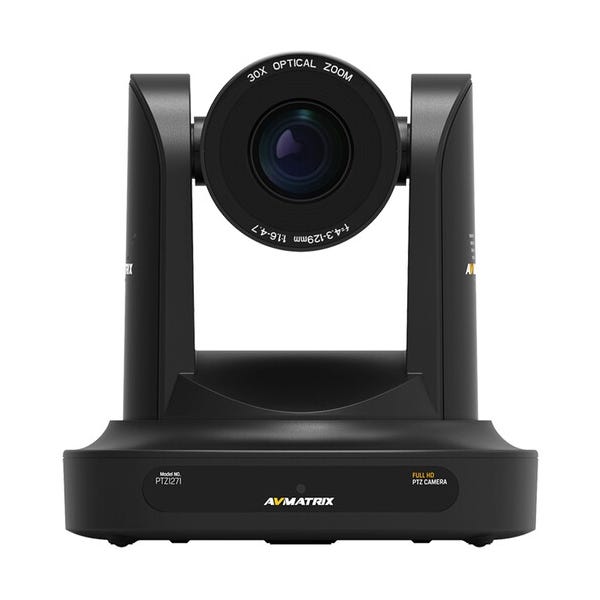

AVMatrix PTZ1271-30X-POE Full HD PTZ Camera, 30x Zoom, PoE

AVMatrix PTZ1271-30X-POE: 30X Optical Zoom PTZ Camera for IP Production

The AVMatrix PTZ1271-30X-POE is a Full HD PTZ camera with 30x optical zoom, built on a 1/2.8-inch HD CMOS sensor for clean 1080p capture. It outputs HDMI, 3G-SDI and IP simultaneously and streams over RTMP, RTSP, SRT and ONVIF across a standard network. Fast, quiet pan and tilt with 255 presets make repeatable moves effortless. For streaming a service, a lecture or a live event, it is a versatile camera that fits straight into your workflow.

Sensor, Lens and Zoom Reach

A 1/2.8-inch 2.07 MP HD CMOS sensor pairs with 30x optical and 10x digital zoom (f/1.5-3.5, roughly 6.5-260mm) for long tele reach, giving the framing range a fixed camera cannot. Minimum illumination of 0.5 Lux and 3000-7000K white balance (auto, manual or one-push) keep the picture usable across venue lighting. The 30x optical range lets the PTZ1271-30X-POE hold a tight shot from the back of a room without losing detail. That reach is what makes a single PTZ cover an entire stage or chamber.

Simultaneous Outputs and IP Streaming

The PTZ1271-30X-POE sends HDMI, 3G-SDI and IP/LAN outputs at the same time, so a switcher, a local monitor and a stream can all be fed at once. RTMP, RTSP, SRT and ONVIF IP streaming sends 1080p over a standard LAN for direct streaming and IP production. Multi-protocol control runs over VISCA, VISCA-over-IP and Pelco-D/P through the IR remote, web UI, RS-232, RS-485 or an IP joystick. One camera drops cleanly into baseband and networked productions alike.

Movement, Presets and Control

Pan spans 340 degrees and tilt 120 degrees, at speeds from a crawl up to 180 degrees per second, with 255 recallable presets (10 from the IR remote). Smooth, quiet motors make on-air moves clean, and preset recall snaps to exact framings on cue. Control interfaces cover IR, web, serial and IP so the camera fits whatever operating position you run. Repeatable, reliable moves are the point of a PTZ, and the PTZ1271-30X-POE delivers them.

Power, Mounting and Field Use

A single PoE 802.3af connection powers and networks the camera over one Ethernet cable, or the included 12V adapter handles non-PoE installs, drawing about 12 W. A 1/4-inch-20 tripod thread and optional wall or ceiling bracket cover mounting, and a 14 to 122 F operating range suits real venues. At about 3 pounds body-only it installs easily overhead. It is built to disappear into the room and just work.

Who the PTZ1271-30X-POE Is For

This camera suits houses of worship, education and lecture capture, conference and hybrid meeting rooms, sports and event streaming, and multi-camera studios switched over IP. Its simultaneous outputs make it equally at home feeding a hardware switcher or a software stream. If you need dependable, remotely controlled framing at 30x reach, the PTZ1271-30X-POE is a strong fit.
