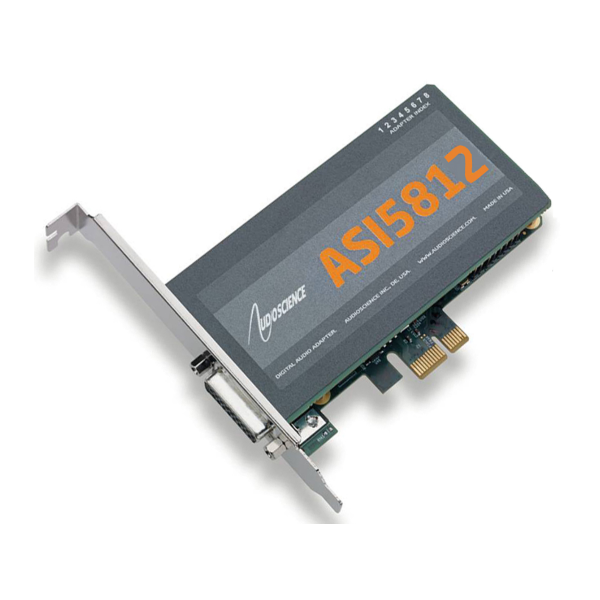

AudioScience ASI5812 PCI Express, 2 Record, 4 Play/1 Out, Analog & Digital, MPX & HD Outputs, GPIO, PCM

The ASI5812 is a professional PCI Express audio adapter designed for use in radio broadcast FM MPX generation. The adapter offer two stereo record streams from either a balanced analog input or AES/EBU digital input and four stereo play streams mixed to a balanced analog output and two AES/EBU digital outputs. The second AES/EBU output includes a Sample Rate Converter (SRC) and independent sample rate clock. The adapter also includes GPIO in the form of four opto-isolated inputs and two relay isolated outputs. Features: - 1 input (analog or AES/EBU) - Balanced XLR - 1 analog output and 2 AES/EBU outputs - Balanced XLR - Four stereo streams of PCM playback mixed to outputs - Two stereo streams of PCM record fed from 1 stereo input - GPIO: Four opto inputs and two relay outputs - AES/EBU or S/PDIF digital input and output (software selectable) - 24bit analog-to-digital and digital-to-analog converters - 100dB SNR and 0.0025% THD+N - 11 to 192kHz sample rates - MRX™ multi r
