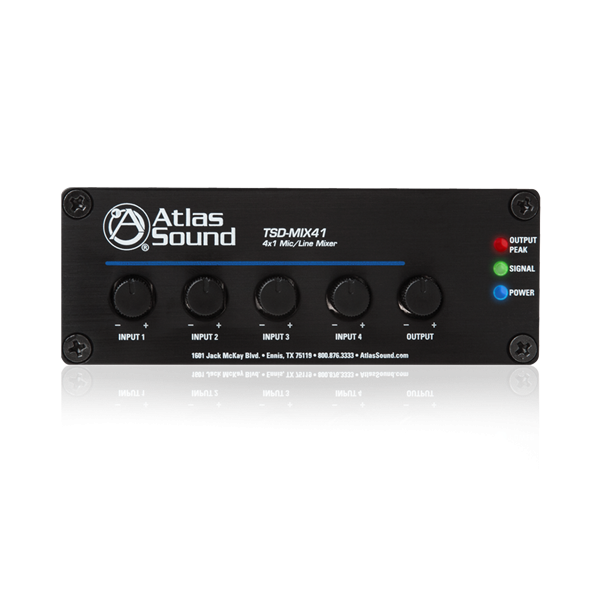

Atlas Sound TSD-MIX41 4 x 1 Mic/Line Mixer

Versatile 4x1 Mic/Line Mixer for Professional Audio Blending
The Atlas Sound TSD-MIX41 is a powerful 4x1 mic/line mixer designed to meet the demanding needs of various audio environments. This compact unit excels in applications where multiple microphone or line sources need to be sub-mixed or summed, making it an invaluable tool for houses of worship, restaurants, conference rooms, and educational institutions. By combining similar sources, such as choir microphones, into a single mixer channel, the TSD-MIX41 simplifies audio management and enhances overall sound quality.

High-Quality Preamps for Crystal Clear Audio
At the heart of the TSD-MIX41 are its low-noise internal mic preamps. These preamps ensure exceptional clarity and quiet operation, preserving the natural sound of your audio sources without introducing unwanted coloration. With up to 50dB of mic gain per input, this mixer provides ample amplification for even the most demanding microphones, ensuring that every nuance of the performance is captured with precision.

Flexible Input Options for Diverse Audio Sources
The TSD-MIX41 boasts four balanced mic/line inputs, each equipped with a mic/line switch and phantom power capability. This versatility allows the mixer to accommodate a wide range of audio sources, from dynamic microphones to condenser mics and line-level devices. The inclusion of switchable 24V phantom power on each input ensures compatibility with professional-grade condenser microphones, expanding your options for high-quality audio capture.

Advanced Audio Filtering for Optimal Sound
To combat common audio issues, the TSD-MIX41 incorporates a 12dB/octave high-pass filter at 125Hz on each input. This thoughtful feature effectively minimizes bass rumble and low-frequency feedback, ensuring that your audio remains clean and focused. Whether you're managing spoken word in a conference room or blending choir voices in a worship setting, this filter helps maintain clarity and intelligibility in your mix.

Professional Connectivity and Output Options
The TSD-MIX41 is designed with professional installations in mind. It features a balanced line output for seamless integration with other audio equipment, and a high-gain output option for driving long balanced lines without signal degradation. This makes the mixer ideal for complex setups where audio needs to be routed over significant distances. The inclusion of removable Phoenix-style I/O connectors facilitates easy installation and maintenance, allowing for quick setup and reconfiguration as needed.

User-Friendly Monitoring and Control
Effective audio management requires clear visual feedback, and the TSD-MIX41 delivers with input peak and signal indicator LEDs for each channel. These indicators allow operators to monitor input levels at a glance, ensuring optimal signal strength and preventing overload. For installations where security is a concern, the mixer includes covers for all front panel controls, preventing unauthorized adjustments and ensuring consistent performance.

Versatile Applications and Integration
Whether used as a standalone mic/line mixer or interfaced with Atlas Sound amplifiers, the TSD-MIX41 adapts to a variety of audio environments. Its compact design and robust feature set make it equally at home in a house of worship blending choir mics, a restaurant managing background music and announcements, or a school auditorium handling multiple audio sources for performances and presentations. The separate ground connections further enhance its flexibility, allowing for clean audio in various installation scenarios.
