Atlas Sound SD72W 8" Dual Cone Loudspeaker

Perfect Audio Solution for Every Venue
The Atlas Sound SD72W 8" Dual Cone Loudspeaker is designed to deliver exceptional audio quality in diverse settings such as schools and restaurants. This speaker is a continuation of the revered C-Series, providing a familiar high-quality sound to those who have used Atlas Sound products before. Equipped with a 25V/70.7-5W transformer and designed to reduce sonic disturbances, this model ensures crisp, clear sound across various applications.

Engineered for Clarity and Longevity
This 8" loudspeaker features a dual cone design, powered by a robust 25-watt amplifier. The core of the speaker is fortified with a 10oz ceramic magnet and a curvilinear paper cone specially treated to minimize harmonic distortion. The addition of a full 1" diameter copper voice coil with a black anodized aluminum former greatly enhances power dissipation, ensuring the speaker performs optimally under continuous use.

Wide-Angle Sound Dispersion
With a dispersion angle of 105°, the SD72W is engineered to cover wide areas effectively, ensuring that sound is evenly distributed throughout any space. This makes it an ideal choice for venues that require consistent sound quality and volume, regardless of room size or shape.

Sleek, Functional Design with Easy Installation

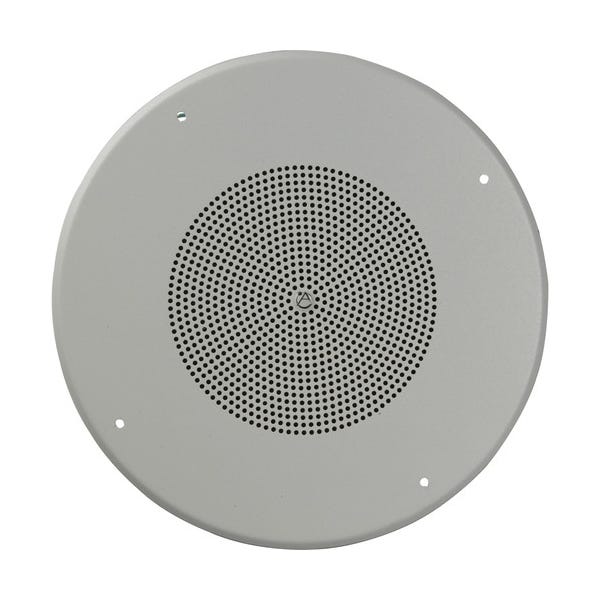

The speaker is accompanied by a CRS baffle that features concealed mounting studs and white powder coat epoxy finish, providing a neat and tidy appearance once installed. The baffle is pre-equipped with standard mounting holes compatible with the majority of Atlas Sound 8" tile bridges and enclosures, facilitating easy and versatile installation.

Packaged for Convenience and Efficiency
Each SD72W speaker comes individually packaged with all necessary screw mount hardware included. This packaging approach not only protects the product during shipping but also streamlines the stocking and installation process for contractors and venue managers.
