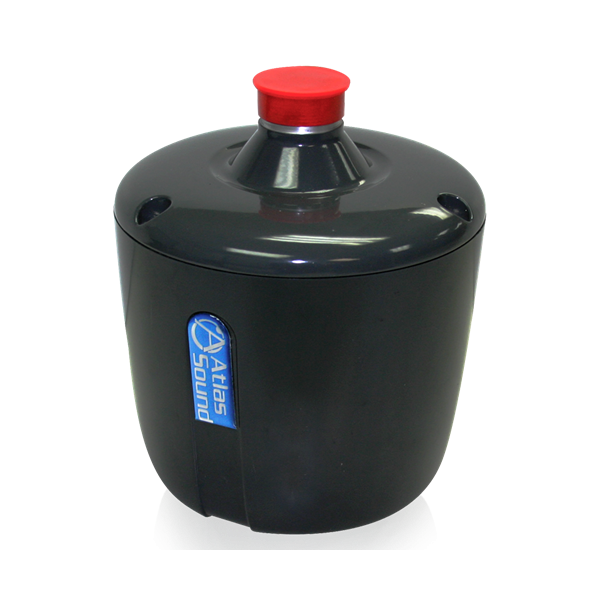

Atlas Sound PD75T High Efficiency Compression Driver

Elevate Audio Delivery with the Atlas Sound PD75T Compression Driver
The Atlas Sound PD75T High Efficiency Compression Driver is an engineering feat designed to cater to demanding indoor and outdoor audio environments. This 75-watt driver is highly recommended for expansive areas or locations with high ambient noise levels, offering exceptional sound quality and power handling capabilities. The PD75T is fully environment-resistant, making it an ideal choice for a wide range of applications from public address systems to outdoor music events.

Robust Build for Diverse Environments
Constructed to endure the elements, the PD75T features a robust design that includes a sound chamber, phasing plug, and precision-machined magnetic-structure components. Its 2-inch voice coil and optimized frequency response of 100Hz to 3.7kHz ensure that sound reproduction is clear, powerful, and consistent across varying conditions. This driver is built to provide reliable performance whether inside a busy mall or in an outdoor stadium.

Highly Versatile Installation Options
This unit is equipped with a built-in multi-tap 70.7-volt line-matching transformer with a 16Ω bypass, providing flexibility in connection and use. The PD75T’s standard 1 3⁄8"-18 thread male couplings allow for easy integration with screw-on horns, or it can be adapted for use with bolt-on large format horns using AtlasIED Model YDA-TH adapters. This versatility ensures it can meet the specific needs of any installation.

Durable and Easy Maintenance
The PD75T is designed not only for high performance but also for ease of maintenance. The corrosion-resistant terminal connections are shielded by a transparent, impact-resistant plastic cover that safeguards against environmental damage while allowing for easy access when needed. Additionally, the diaphragm is replaceable, and a specific model, PD75TDIA, is available for simple, cost-effective servicing.

Protected by Advanced Housing
The internal components of the PD75T are encased in a protective die-cast and polycarbonate injection molded housing, finished with a gray baked epoxy. This layer of protection ensures that the driver remains safe from physical impacts and environmental conditions, thereby extending its lifespan and maintaining its aesthetic appeal.
