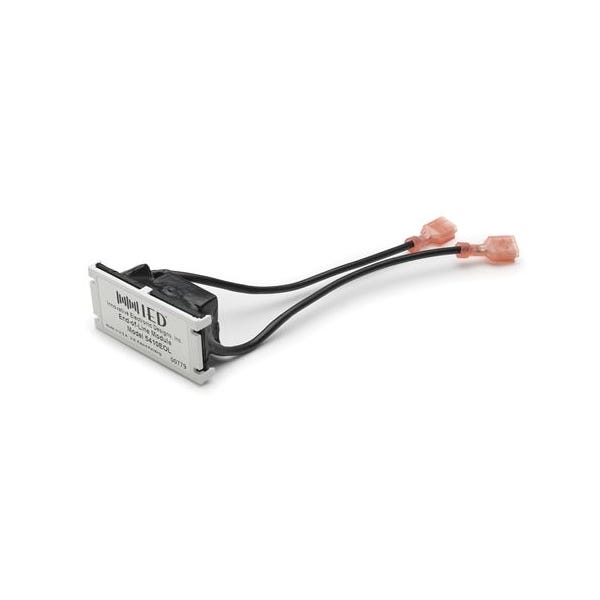

Atlas Sound IED5410EOL EN54-16 End-of-Line Speaker Load Modules for Supervision

Revolutionize Your Audio System Testing with Atlas Sound IED5410EOL
Introducing the Atlas Sound IED5410EOL, a critical component of the GLOBALCOM 5400 series designed to enhance the testing and maintenance of audio systems. This end-of-line testing module is engineered to ensure the continuity and integrity of speaker wiring up to the very end of the line, all without the need for a return wire. Ideal for use with various Atlas Sound digital zone managers and amplifiers, this device streamlines the process of ensuring your audio system's reliability and quality, making it an indispensable tool for audio professionals.

Seamless Integration for Comprehensive Testing
The IED5410EOL is perfectly compatible with the 5404DZM, 5432DZM, DNA2404x, and T112 or T112C amplifiers, allowing it to function as part of a unified system that supports automated test functions. This integration is crucial for administrators and technicians who rely on precise diagnostics to maintain optimal system performance. By automating the testing process, the IED5410EOL not only saves time but also increases the accuracy of your system checks.

Innovative Design for Efficient Operation
This module is uniquely designed to handle the demands of 100 Volt constant voltage speaker lines, providing a significant load at 20 kHz to test the integrity of the speaker lines effectively. However, it's engineered to ensure that its operation has no significant impact on the audible frequency performance of your system, maintaining the clarity and quality of the sound output.

Installation and Usage Guidelines
For effective use, the IED5410EOL requires that speakers on a circuit be wired as one continuous string without any paralleled off branches. This setup ensures that the testing module can accurately assess the continuity and integrity of the entire speaker line. Adhering to these installation guidelines guarantees that the module performs as intended, providing reliable and consistent results.

Choosing the Right Model for Your Needs
The Atlas Sound IED5410EOL is suitable for use with amplifiers producing less than 200W continuous output. For systems involving higher power amplifiers, such as those producing 200W continuous or more, or when using outputs from models like the DNA2404X or T112/T112C, the 5411EOL model is recommended. This distinction ensures that each setup uses a module that matches its specific power handling requirements to maintain system integrity.
