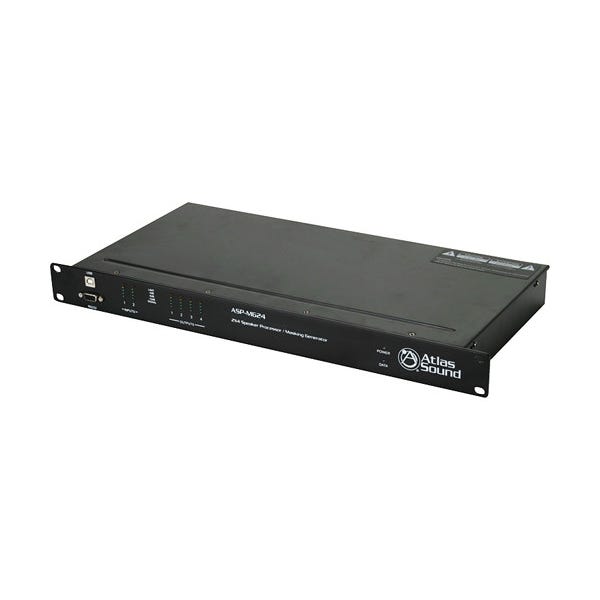

Atlas Sound ASP-MG24 Sound Masking Processor / Speaker Controller

Optimize Your Audio Environment with the Atlas Sound ASP-MG24
Elevate your audio setup with the Atlas Sound ASP-MG24 Sound Masking Processor and Speaker Controller. This advanced unit revolutionizes sound masking control while offering exceptional speaker processing capabilities for the most popular AtlasIED speaker systems. The ASP-MG24 is a versatile 1RU device that features 2 inputs with 4 masking generators and 4 output DSPs, configurable through an intuitive setup GUI. This processor is ideal for environments that require nuanced audio control and discreet sound masking.

Advanced Configuration for Ultimate Control
The ASP-MG24’s robust configuration capabilities allow for precise sound management. Four inputs are independently connected to white/pink noise generators with adjustable power-up ramps, ensuring smooth acclimation in case of power interruptions. Additionally, two extra inputs accommodate mic or line sources, allowing for seamless integration of paging and music into the sound masking system. This flexibility makes the ASP-MG24 perfect for creating a controlled, acoustically comfortable environment.

Sophisticated Audio Processing Features
Each of the four generator outputs includes dedicated 1/3 octave filter sets, and the two mic/line inputs are equipped with 8-band parametric EQ blocks and dynamic control. This detailed sound shaping is enhanced by the ability to matrix any mix of the 6 inputs to the 4 output DSP blocks for further refinement with additional parametric equalization, delay, and limiting as needed.

Customizable Zone Management for Complex Systems
The ASP-MG24 supports configurations for a comprehensive 4-zone sound masking system using 2 external music or paging sources. This capability is complemented by multiple output modes, including stereo full range or full range plus sub operation, ideal for use with AtlasIED’s range of ceiling speakers, surface mount speakers, or stadium horns. This ensures that the ASP-MG24 can meet the diverse needs of any installation.

User-Friendly Interface and Installation
Ease of use is paramount with the ASP-MG24, which features a straightforward computer interface through USB & RS-232 connections, eliminating the need for cumbersome USB to Serial adapters. An external UL-listed international voltage power supply is included, ensuring the unit is ready to use in a variety of global settings.
