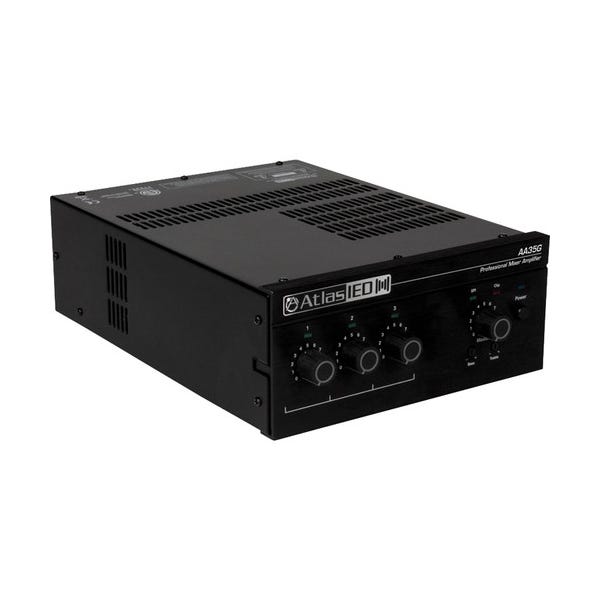

35 Watt Mixer Amplifier for Paging and Background Music Systems
This 3-input, 35-watt mixer amplifier is designed to power paging, background music, and music-on-hold systems in commercial and professional environments. It combines audio mixing and amplification in a single compact unit, making it a practical solution for offices, retail spaces, restaurants, medical facilities, and small to medium business installations that require reliable voice and music distribution.
Three Input Design for Flexible Audio Sources
The amplifier provides one balanced microphone input and two stereo line inputs, allowing multiple audio sources to be connected at the same time. Paging microphones, media players, music servers, and digital receivers can all be mixed and controlled independently using front-panel volume controls, giving users straightforward control over day-to-day operation.
Secondary Zone Output for Music on Hold and Remote Audio Feeds
A dedicated second zone output allows audio to be routed separately for applications such as music on hold or auxiliary paging. A selectable internal matrix lets installers assign any combination of inputs to the secondary zone, making it easy to tailor audio routing for phone systems or additional listening areas without adding external mixers.
Priority Muting for Clear Paging Announcements
The amplifier includes priority muting that can be triggered by voice activation or an external switch. When paging is initiated, background music is automatically reduced so announcements remain clear and intelligible. This function is especially useful in business environments where timely communication is critical.
Tone Control and Visual Monitoring for System Management
Bass and treble controls on the master output allow fine adjustment of overall sound character to suit different spaces. Signal presence indicators provide visual confirmation of audio activity, helping installers and operators verify proper system operation quickly.
Universal Power and Multiple Output Options
A universal AC power supply supports operation from 120 to 240 volts, making the amplifier suitable for international use. The output section supports 70V, 100V, or 8-ohm speaker systems, allowing it to integrate easily into both distributed and conventional loudspeaker installations.
