19-Inch Omnidirectional Dynamic Gooseneck Microphone, DPDT Push-to-Talk Switch, 150Hz–10kHz Response, 2 3/4-Inch Mounting Flange, 5/8-Inch Thread, 7 ft Cable, Impact-Resistant ABS Body

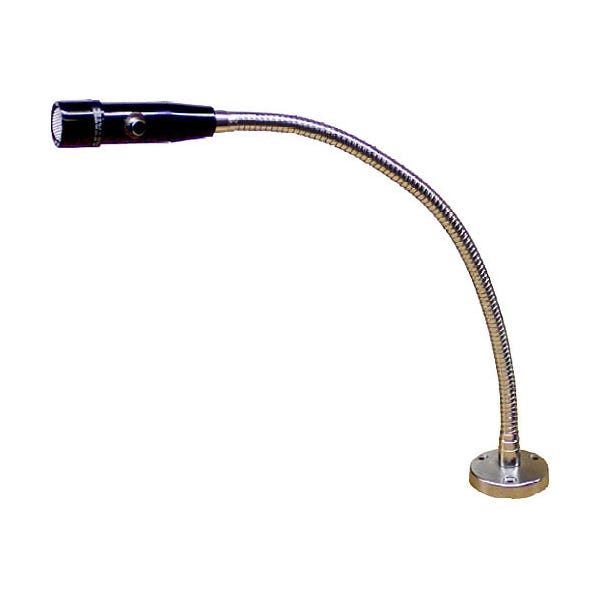

The Astatic AMC105SNO-19 is a 19-inch omnidirectional dynamic gooseneck paging microphone with an integrated DPDT push-to-talk switch. Built for fixed installation, it bolts through a counter or console and rises on a flexible gooseneck to bring the capsule right to the talker. A slight presence boost near 2kHz keeps paged announcements crisp and highly intelligible over a PA. For high-traffic service counters, it is a durable, no-nonsense paging tool.
A moving-coil dynamic element with an omnidirectional pattern drives the AMC105SNO-19 and requires no phantom power or batteries. Dynamic capsules generate their signal by moving a coil through a magnet as sound strikes the diaphragm, which makes them extremely rugged and tolerant of heat, humidity, and rough handling. Because the pattern is omnidirectional, a cashier or dispatcher does not need to speak directly into the front of the mic to be heard clearly.
A 19-inch gooseneck raises the capsule to a comfortable speaking height above the mounting surface and bends to aim it exactly where needed. The gooseneck holds its position through positional memory, so once an operator sets the angle it stays put through constant use. That reach lets a drive-through attendant or transit agent lean in and page without hunching over the counter.
A single DPDT push-to-talk switch, wired normally open, sits at the base of the AMC105SNO-19 and opens the microphone channel only while it is pressed. Push-to-talk operation keeps the PA silent between announcements, preventing background noise and feedback from an always-live counter mic. In a busy fast-food kitchen or supermarket, that momentary control keeps the paging system clean and intentional.
A 150Hz to 10kHz frequency response with a gentle presence boost around 2kHz shapes the AMC105SNO-19 for maximum speech intelligibility. Concentrating energy in the vocal range and lifting the presence region helps consonants cut through the ambient noise of a store, garage, or terminal. This tuning means a page is understood the first time, even in a loud, echo-prone space.
Impact-resistant ABS plastic, a 2 3/4-inch mounting flange, a 5/8-inch thread, and a 7-foot cable equip the AMC105SNO-19 for permanent installation. The wide flange and standard thread bolt securely into a counter, panel, or dispatch console, while the low-impedance 550 ohm output drives long cable runs to a rack amplifier without signal loss. An integrator can install it once and expect years of dependable service in a demanding environment.
Fast-food restaurants, supermarkets, gas stations, transportation and dispatch centers, and commercial facilities are the core homes for the AMC105SNO-19. A store manager gets a fixed paging mic that staff operate with one button and no training, while an AV integrator gets rugged panel-mount hardware and a passive design that needs no power supply. Its chrome-finish gooseneck and sturdy base look professional on any service counter.
| MPN | AMS-AMC105SNO-19 |
|---|---|
| Color | Black |
| Element | Dynamic |
| Pattern | Omnidirectional |
| Power Source | Passive |
| Form | Gooseneck |
| UPC / EAN | 631922101515 |
| Brand | ASTATIC |
| Product Condition | New |
| Availability | Out of Stock |
| Operating Principle | Moving Coil Dynamic |
| Polar Pattern | Omnidirectional |
| Frequency Response | 150Hz – 10kHz |
| Sensitivity | -56dBV (1.6 mV) @ 1 Pa |
| Impedance | 550 ohms |
| Switch | DPDT push-to-talk, normally open |
| Gooseneck Length | 19 in |
| Mounting | 2 3/4 in flange, 5/8 in thread |
| Cable | 7 ft |
| Power | Passive (no power required) |
