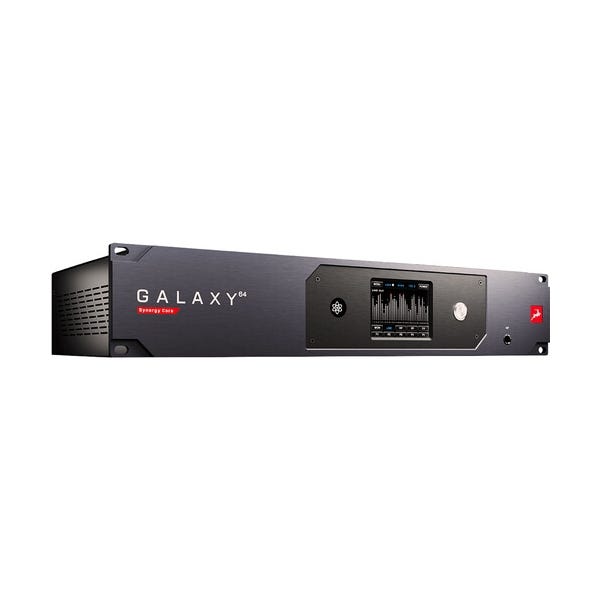

Antelope Galaxy 64 Synergy Core – 64-Channel Interface + 34 FX

64-Channel Audio Interface with Dante, HDX, MADI, and 34 Real-Time FX

The Antelope Audio Galaxy 64 Synergy Core is a powerhouse 64x64 audio interface, AD/DA converter, and digital routing solution built for elite-level recording, post-production, broadcast, and live sound environments. With support for Thunderbolt 3, HDX, Dante, and MADI, it offers massive connectivity in a compact 2U rackmount form, complete with real-time analog-modeled effects and Antelope’s signature precision clocking.

Powered by 2 FPGA and 12 DSP processors, Galaxy 64 supports up to 256 FX instances across 64 channels — all offloaded from your CPU. It comes bundled with 34 real-time Synergy Core effects, offering mastering-grade compression, EQ, reverb, and saturation tools modeled after iconic analog hardware.

Unmatched AD/DA Conversion and Clocking Accuracy

• 64 analog line inputs and outputs (DB25 connectors)
• 192 kHz / 24-bit conversion with 130 dB dynamic range
• Ultra-low THD+N with transparent frequency response
• 64-bit Acoustically Focused Clocking (AFC™) and jitter management
• 6 Word Clock outs, loop sync, and atomic clock input

Industry-Standard I/O & Integration

• 4 HDX ports – Pro Tools HDX integration
• 2 Dante ports – Redundant IP audio networking
• 1 Thunderbolt 3 port – Native Mac/PC connectivity
• Optical MADI (SC), AES3, and S/PDIF digital I/O
• Dedicated monitor outs and headphone jack for mastering-level monitoring
• 8 internal mixers with 32 channels each

34 Real-Time Synergy Core FX Included

These effects are processed entirely inside the unit using hardware DSP/FPGA chips — no CPU required, and no latency added.

FX Breakdown by Type:

Preamps & Mic Amps

• BA-31 – Germanium Mic Preamp
  Adds vintage tone coloration with harmonic richness and subtle saturation; great for vocals and instruments.
• Gyraf Gyratec IX – Dual-Tube Mic Preamp with HPF
  Emulates boutique dual-tube circuits for analog warmth and rounded lows; includes high-pass filtering for clarity.

Compressors / Limiters

• Stay-Levin – Vari-Mu Tube Compressor
  Smooth, musical compression perfect for vocals and mix bus glue; inspired by the Fairchild 670.
• ALT-436C – Vari-Mu Tube Compressor
  Altec-style dynamic processor with thick, vintage character and forgiving attack/release curves.
• FET-A76 – FET Compressor (1176 Emulation)
  Fast, punchy compression with aggressive attack—ideal for drums, vocals, and parallel processing.
• FET-A78 – Stereo Peak Limiter/Compressor
  Dual-channel dynamics tool with variable threshold and ratio; good for mastering or bus work.
• BAE 10DCF – Vintage Compressor/Limiter
  Classic Neve-style limiter adds character while taming peaks; great for mix bus or individual tracks.
• SMT-100A – Tube Leveling Amplifier (LA-style)
  Smooth, level-focused compression inspired by Teletronix LA-4; great for vocal tracks.
• Tube 176 – Vari-Mu Tube Compressor/Limiter
  Rich tube-driven dynamics processing with deep harmonic coloration and gentle gain reduction.
• VCA 160 – VCA Compressor/Limiter
  Tight and responsive dynamics tool inspired by the dbx 160; ideal for percussion and parallel comp.
• X903 – VCA Compressor (British-style)
  Versatile mix tool for bus compression or surgical dynamics shaping with a clean, modern tone.
• PowerFFC – Feed-Forward Compressor
  Transparent dynamics control with minimal tonal color; great for final stage or instrument balancing.

Equalizers

• BAE-1023 / BAE-1084 – 3-Band EQs with HPF (Neve-style)
  Vintage British EQ curves with lush midrange and musical shaping; perfect for vocals, guitars, and mixes.
• NEU-PEV / NEU-W492 / NEU-W495 – 3- and 4-Band EQs (German-style)
  Based on classic mastering EQs with subtle, precise shaping for critical tone work.
• VEQ-1A – Tube EQ (Pultec-style)
  Scoop-and-boost curves for smooth lows and silky highs—ideal for voice, bass, and overheads.
• VEQ-55A – 3-Band EQ with HPF/LPF
  Surgical and musical tone control modeled after analog studio EQs.
• VEQ-HLF – 2-Band Tube HPF/LPF Filter
  Vintage-style filters for taming low-end rumble or cutting harsh top-end.
• VMEQ-5 – 3-Band Tube Midrange EQ
  Adds warmth and texture to mids; great for vocals and synths with classic Pultec-style curves.
• VEQ-4K Series (BLACK, BROWN, ORANGE, PINK) – 4-Band Console EQs
  Modeled after iconic analog desks, each with unique character (aggressive, clean, dark, bright).
• VEQ-HA32C – 4-Band EQ with HPF/LPF
  Studio-grade analog EQ modeled for mastering and critical shaping.
• VEQ-STU 089 / STU 169 / STU 900 – 3- and 4-Band Studio EQs
  Modeled after classic console EQ sections with tonal flexibility and smooth analog curves.
• Clear Q – Parametric Digital EQ
  Precision frequency shaping with full digital control—ideal for surgical mixing or subtractive EQ.

Creative FX & Modulation

• AuraVerb – Studio Reverb
  Customizable reverb with room, plate, and hall tones—adds space and depth without harshness.
• Marble White AutoWah – Auto-Wah Effect
  Dynamic filter sweep effect perfect for guitar, funk bass, or experimental synths.
• Vari-Speed Tremolo – Classic Tremolo Unit
  Emulates variable speed volume modulation with vintage warmth—great for guitar or vocal movement.

Utility / Monitoring Tools

• Master De-Esser – De-Essing Processor
  Tames harsh vocal sibilance without dulling the tone; ideal for dialogue, vocals, and top-end content.
• Power EX – Expander
  Enhances dynamic range and clarity by reducing low-level background noise.
• Power Gate – Noise Gate
  Cuts unwanted signal floor and bleed in mics; essential for drums, amps, and live mics.
• A-Tuner – Instrument Tuner
  Precision chromatic tuner for guitars and basses—fast, accurate, and real-time ready.

Workflow & Monitoring Efficiency

• Software control panel with visual routing, FX chains, and preset recall
• Front-panel touchscreen for hands-on control of metering, levels, and more
• 8 low-latency mixers (32 channels each)
• Save/load entire routing scenes for repeatable session configurations
• Standalone operation mode with network control support

Summary

The Galaxy 64 Synergy Core is Antelope’s flagship interface — combining massive 64-channel analog I/O, pristine conversion, full-format digital I/O, and 34 included studio-grade effects. Whether you're building a Dolby Atmos mastering suite, a high-end broadcast facility, or a scalable live rig, Galaxy 64 delivers unmatched power, clarity, and routing flexibility in a single rack unit.
