AKG WMS40 Mini Instrumental Wireless Set US25C 539.300 MHz Bodypack

AKG WMS40 Mini Instrumental Set US25C: Body-Worn Wireless That Depends on Sight Lines

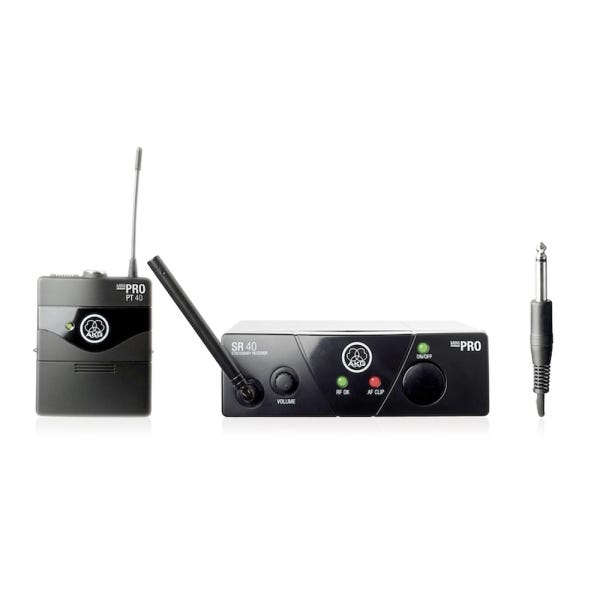

The AKG WMS40 Mini Instrumental Set on band US25C is an analog UHF plug-and-play single-channel wireless system running on one fixed carrier at 539.300 MHz. Its transmitter is the PT40 Mini bodypack, whose professional 3-pin locking mini input AKG documents as accepting guitars, basses, instrument pickups and headset microphones, so the same pack that carries an instrument in a club can carry a headset in a studio. Transmit power is 10 mW at maximum, which is a deliberately modest figure and the reason this system rewards thought about where the receiver sits far more than it rewards a bigger amplifier. Audio runs 40 Hz to 20,000 Hz with a 105 dB-A signal-to-noise ratio, and one 1.5 V AA size cell gives up to 30 hours. Get the receiver position right and the link is completely dependable; get it wrong and no setting on the box will rescue it.

Line of Sight, and Why Receiver Position Beats Transmit Power

Radio at UHF frequencies behaves far more like light than like sound, and that single idea explains almost every dropout on a system of this class. A 10 mW transmitter radiates enough energy to cover a room easily provided the path is reasonably clear, but a human body absorbs UHF strongly, so a pack worn at the small of the back with the receiver directly in front of the wearer is transmitting through the worst possible obstacle; metal absorbs and reflects it, which is why racking, mirrors with metallised backing and steel-framed staging create shadows. Raising the receiver above head height and putting it where it can see the working area, rather than tucking it behind a desk or inside a cabinet, is usually the entire fix. An instructor at the front of a studio and a receiver on a high shelf facing them will outperform the same pair of boxes ten feet apart at floor level.

Reading the RF OK Indicator as a Placement Tool

Three status LEDs on the SR40 Mini report power, received signal strength labelled RF OK, and audio clipping labelled AF CLIP, and the middle one is the most useful diagnostic on the receiver. RF OK is not decoration: it tells an operator whether the receiver currently has a signal it considers healthy, which turns receiver placement from guesswork into a two-minute test where somebody walks the room with the transmitter switched on while a second person watches the indicator. Any position where the indicator falters is a position to design out, whether by moving the receiver, raising it, or asking the wearer to keep the pack on a hip rather than in the centre of their back. A studio manager who runs that walk-through once, before the first class, avoids the complaint that the microphone cuts out in the far corner.

Running a Headset Microphone on the Bodypack

Although this set is catalogued as an instrumental set and ships with the MKG L instrument cable, the bodypack input is explicitly documented as accepting headset microphones as well, which opens a second and very common use. A headset places the capsule a fixed short distance from the mouth, so the level arriving at the transmitter stays constant however energetically the wearer moves, and that constancy is what allows a single volume setting to survive a class that runs from a whisper to a shout; a handheld or a lectern microphone cannot do that for somebody whose hands are busy. The gain control on the pack then trims for the specific headset and the specific voice. A spin instructor shouting over music, a dance teacher counting a routine and a coach working the side of a gymnasium all need the same thing, which is a microphone that does not move.

Rooms That Fight Radio, and What To Do About Them

Certain rooms are genuinely hostile to a modest wireless link, and recognising them in advance saves an evening of troubleshooting later. Mirrored walls are the classic case, because the reflective coating behaves like a sheet of metal at these frequencies and turns one side of a studio into a reflector; open steel racking, roller shutters, glazed partitions with metallic film, and gantries above a gymnasium all do something similar, creating positions where two arriving copies of the signal cancel and leave a small dead pocket. The remedy on a single-antenna system is spatial rather than electronic: move the receiver a foot or two, change its height, or re-angle it, because a null is a small volume of space and shifting either end of the link moves it. Fitness studios, school gymnasia and community halls with metal-framed stages are where this discipline earns its keep immediately.

Where the US25C Instrumental Set Fits, and the Band Check

Buyers here divide into two groups: instrumentalists who want the MKG L cable and the BC400 belt clip as supplied, and studio operators who will fit a headset to the same pack. Fitness, spin and dance studios, yoga and pilates rooms, school gymnasium classes and coaching sessions, small theatres where the receiver must live offstage, and community halls with metal-framed staging all appear regularly. Because the carrier is fixed at 539.300 MHz on band US25C, the check before ordering is to establish what other wireless already runs in the building and read the band letters printed on it, since two systems sharing a US25 letter cannot work in the same room. Anyone already running a US25A system will find US25C a sensible companion, because those two letters are one of the two pairings AKG itself supplies as a coordinated dual system.
