AKG WMS40 Mini Instrumental Set US25A: Fixed-Frequency Wireless for Instruments

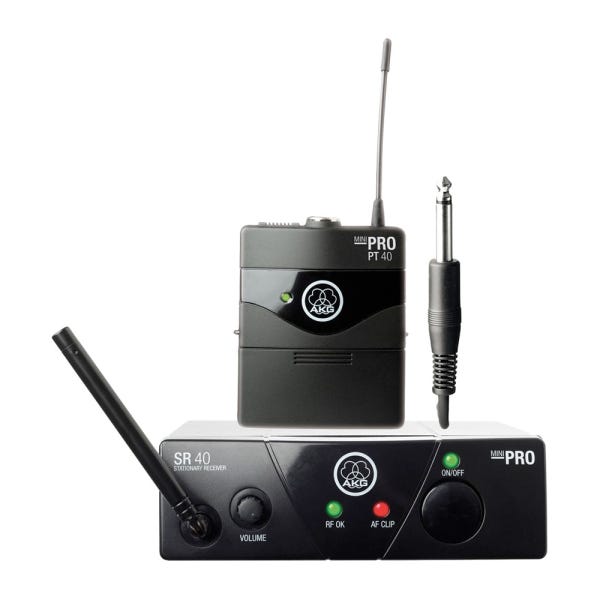

The AKG WMS40 Mini Instrumental Set on band US25A is an analog UHF plug-and-play single-channel wireless system that operates on one fixed carrier at 537.500 MHz. The box holds an SR40 Mini single-channel receiver, a PT40 Mini bodypack transmitter, an MKG L instrument cable, a BC400 belt clip, one AA size battery and a universal switched-mode supply, which is everything a guitar or bass needs to go wireless without a second order. Because the carrier is fixed rather than tunable, there is no scan to run, no pairing handshake and no menu to learn, and the whole channel comes up the instant both halves are switched on. Audio runs 40 Hz to 20,000 Hz through AKG HDAP high definition audio performance circuitry, with a 105 dB-A signal-to-noise ratio and 0.8 percent total harmonic distortion at 1 kHz. It is the set a player buys when the aim is to stop tripping over a cable, not to learn radio engineering.

The PT40 Mini Bodypack Input and What It Will Accept

Signal reaches the transmitter through a professional 3-pin locking mini connector, and AKG documents that input as accepting guitars, basses, instrument pickups and headset microphones. A locking mini connector is a small multi-pin socket that both carries the audio and supplies the low voltage a condenser element or an active pickup buffer may need, and the locking collar is the reason it stays put on a moving player where a friction-fit plug would work loose over an evening; it also means that only cables and microphones terminated for a bodypack will fit, which is a feature rather than a limitation because it prevents a mismatch reaching the input. The practical consequence is that this one transmitter serves an electric guitar today and a clip-on horn microphone or a headset next season. A worship guitarist, a pit violinist with a bridge pickup and a brass player with a clip-on element are all served by the same bodypack and different leads.

MKG L Instrument Cable, BC400 Belt Clip and What Complete Means

Supplied in the box are the MKG L instrument cable and the BC400 belt clip, and their presence is the reason this is called a set rather than a transmitter. Instrument wireless is often sold as a bodypack alone, which leaves a buyer discovering at the first rehearsal that a bodypack has no way of reaching a guitar jack, and that the correct lead is a specific locking-mini-to-instrument-plug cable rather than any patch lead in the gig bag; here that cable is already the right one, and the belt clip solves the second half of the problem by giving the pack somewhere to live that is not a back pocket. A guitar strap, a bass player's belt and a keyboard player's waistband are all catered for the same way. For a first wireless purchase, the difference between a complete set and a component is an evening of frustration.

Gain Control and Matching Wildly Different Pickups

A gain control on the bodypack body sets how much signal the transmitter is fed, and on an instrument channel that control does more work than it does on a microphone channel. Instrument outputs vary enormously: an active bass preamp can put out several volts of signal while a passive piezo under an acoustic bridge produces a fraction of that, and a transmitter with no input gain would either be driven into distortion by the first or left hissing quietly behind the second. Setting the gain at the transmitter fixes the problem where it starts, so the radio link carries a healthy signal and the mixer receives a channel that needs only ordinary trimming. A function band whose guitarist swaps between an active and a passive instrument between sets can set the pack once for each and leave the desk alone.

HDAP and the Audio Path an Instrument Actually Travels

AKG HDAP high definition audio performance circuitry defines the audio path on this platform, which is specified at 40 Hz to 20,000 Hz with a 105 dB-A signal-to-noise ratio, 0.8 percent total harmonic distortion at 1 kHz and plus or minus 15 kHz of frequency stability. Those numbers matter differently for an instrument than for a voice: the low end of a five-string bass or a detuned guitar lives well below where speech begins, so a bandwidth that reaches down to 40 Hz keeps the fundamental of a low note rather than thinning it, while frequency stability of plus or minus 15 kHz is what stops the carrier drifting far enough to degrade the link as the transmitter warms up in a pocket. Total harmonic distortion of 0.8 percent at 1 kHz is the figure to hold in mind when a player asks whether wireless will change their tone. In a small club with a modest desk and no outboard processing, that path is transparent enough that the audience hears the amplifier rather than the radio.

Where the US25A Instrumental Set Fits, and the One Check Before Ordering

Guitar and bass players in small clubs and bars are the core buyers here, along with worship teams putting an acoustic guitar on wireless, function bands moving between two stages in a night, and rehearsal rooms where one player needs to be able to move. Rooms that suit the set share a profile: a single instrument channel, a modest mixer or a powered speaker, and nobody on staff whose job is radio coordination. Because the carrier is fixed at 537.500 MHz on band US25A, the one check to make before ordering is whether anything else in the building already occupies that frequency, and the answer usually comes from asking what other wireless the venue owns and reading the band letters on it. Two systems on the same US25 letter cannot share a room, which is the single most common mistake made with this platform and also the easiest to avoid.
