AKG PZM6 D Compact Hemispherical Boundary Layer Microphone Fixed Cable

AKG PZM6 D: The Small Plate That Still Covers 20 Hz to 20 kHz

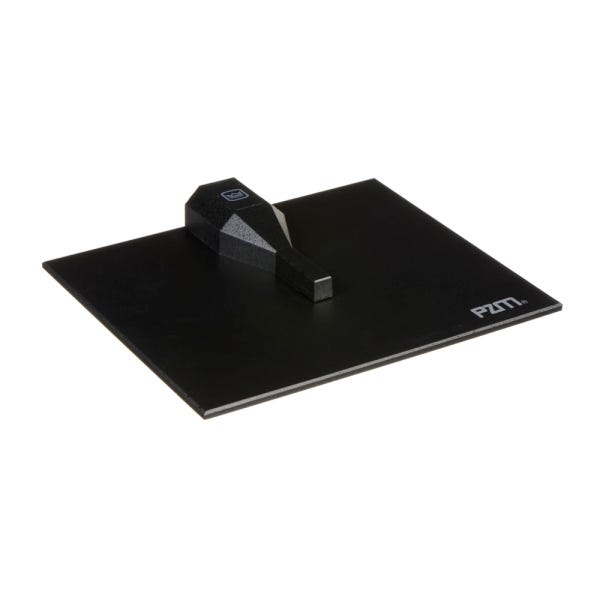

The AKG PZM6 D is a compact hemispherical Pressure Zone Microphone with a 20 Hz to 20,000 Hz response, 7 mV/Pa sensitivity and a 74 dB-A signal-to-noise ratio, housed in a metal plate measuring just 3.0 x 2.5 x 0.35 in (76 x 63 x 9 mm). AKG's own positioning is direct: the very small housing makes it more inconspicuous than the larger plate in the range, while the electroacoustic figures stay the same. Its stated applications run from miking full orchestras or individual instruments to security, teleconferencing and film and video production. Anyone who has liked the sound of a boundary plate but not the sight of one is the buyer this model was designed for.

Why Plate Size Is a Sightline Decision

Boundary microphones are chosen as often for what they hide as for how they sound. On a drama stage where the design brief is no visible microphones, along the front edge of a thrust stage a metre from the front row, on a small conference table already crowded with laptops, or inside a set piece in a film scene, the difference between a plate the size of a paperback and one the size of a matchbox is the difference between an acceptable position and a rejected one. Because this housing stands only 0.35 in (9 mm) tall, it reads as a fitting rather than as equipment even from a few feet away, which is precisely why location sound recordists and theatre designers keep them in a kit alongside the larger plates. The acoustic penalty for choosing the small one is not a bandwidth penalty, since the published response and sensitivity match its bigger relative.

A Fixed Cable Is the Right Choice on a Floor

Cable termination distinguishes this model from the larger plate, which uses a detachable lead, and on a floor the fixed cable is often the better arrangement. A connector at the microphone is one more thing to be kicked apart by a performer, snagged by a rolling truck, filled with dust from a stage deck or unplugged by someone tidying up between shows, and none of those failures announces itself until the channel goes quiet. A captive cable running to a 3-pin XLR male removes that risk entirely, so the only connection in the path is at the stage box where an operator can see it. Location and event crews working fast tend to prefer exactly this, because a microphone with nothing to disconnect is a microphone that stays working through a get-out.

Flat and Rising, Chosen at the Plate

Response selection is a switchable dual characteristic with flat and rising positions, set on the microphone itself. Flat is the natural setting for spoken word, orchestral pickup and teleconferencing, where the intention is to reproduce the source as it is; rising lifts the upper end for a brighter, more present result on percussive material and on instruments whose attack matters. Making that choice at the microphone rather than at the console means the shaping happens ahead of the preamplifier, so any lift is applied to the signal rather than to the preamplifier's own noise contribution. For an engineer working a small plate into a piano or onto a riser, that switch is a faster route to the right tone than a channel strip.

Pressure Zone Operation on a Stiff Surface

Performance depends on the mounting surface, because the surface is part of the microphone. Pressure Zone technology positions a small condenser capsule extremely close to a sound-reflecting boundary so the direct wave and its reflection are effectively coincident and sum in phase, which AKG describes as preventing sound coloration from surface reflections; a conventional microphone a few inches above the same surface would receive that reflection late enough to cancel parts of the band. The practical requirement is a stiff, nonabsorbent boundary such as a hardwood stage deck, a concrete floor, a solid table or a piano lid, and the practical warning is that a thin, flexible or upholstered surface will not deliver the effect. Getting the surface right is worth more than any amount of repositioning.

Published Figures, Omissions and Where It Fits

Honesty about what is documented matters on a model of this age, so it is worth stating plainly that AKG publishes the pattern, bandwidth, sensitivity, signal-to-noise ratio, powering and connector for this microphone but does not publish an output impedance, an equivalent noise level or a maximum SPL figure for it. Those figures should not be borrowed from the larger plate in the range, because a sibling's numbers are not this model's numbers. What is confirmed is enough to specify it with confidence for drama and musical theatre floors, small conference tables, orchestral and instrument work, film and video sets, and security positions, and the choice against the larger PZM30 D comes down to two things: a much smaller visible footprint, and a fixed cable instead of a detachable one.
