AKG PZM11 LL: Line-Level Flush-Mount Boundary Plate Microphone

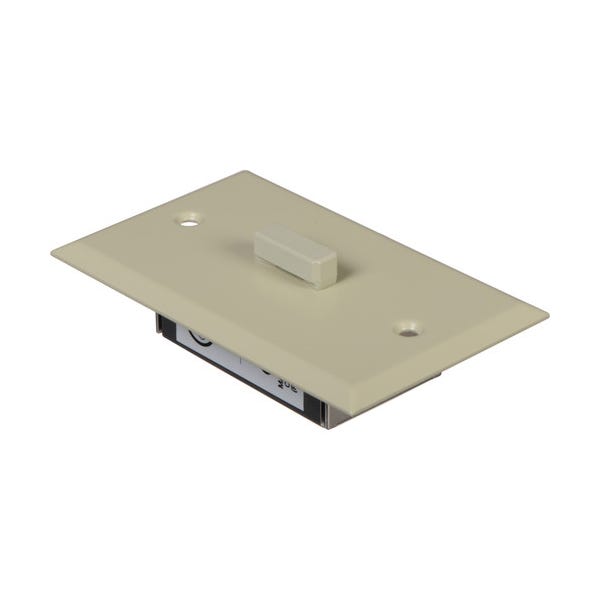

The AKG PZM11 LL is a professional flush-mount line-level boundary layer microphone with a hemispherical pickup pattern and an 80 Hz to 20,000 Hz frequency response. LL stands for line level, and it is the entire point of this version: the plate produces a line-level signal, so it connects to a line input on a mixer, recorder, intercom or DSP without a microphone preamplifier stage sitting between them. Pressure Zone Microphone, abbreviated PZM, describes the boundary technique it uses, holding the capsule right at the wall or ceiling plane so the direct sound and the surface reflection arrive in phase and reinforce one another rather than comb filtering. Construction is a steel plate that mounts flush into a standard electrical outlet box, tamper-resistant by design and visually almost invisible once the wall is finished. It is the microphone specified when audio has to be captured reliably from a space where no microphone should be seen or touched.

What a Line-Level Output Removes From the Signal Chain

Line level is roughly a thousand times stronger than microphone level, and delivering it at the plate itself means the signal leaves the wall already at the voltage a line input expects. In a conventional install a microphone-level plate has to reach a preamplifier before anything useful can be done with it, which adds a gain stage, a channel of hardware, and a long low-level cable run that is vulnerable to induced hum and interference along the way. Feeding a line input directly cuts all three of those out, so a security head end, a recorder, a paging amplifier or a video system with only line inputs can take the microphone straight in without extra rack hardware. That simplification is why this plate turns up in ticket windows, drive-through lanes, teller counters and corridors, where the equipment on the far end of the wire was never designed to accept a microphone.

Hemispherical Boundary Pickup and Built-In Response Shaping

Pickup is hemispherical, meaning the plate hears everything in the half-space in front of the mounting plane with even sensitivity and nothing behind it. One microphone therefore covers an entire counter, corridor or small room from a single flush position rather than needing several units aimed at individual talkers, and because the boundary summation keeps sensitivity and response consistent, a person speaking well across the room stays intelligible. Response shaping is built into the electronics rather than left to the mixer, with a low-frequency rolloff below the speech band and a slight high-frequency lift, and the practical effect is that ventilation rumble, traffic and machinery noise are attenuated while consonants survive being heard through glass, a speech port, a grille or a long cable run. Installers consistently report that the low cut alone keeps HVAC and street noise out of the recording without touching a channel EQ.

Screw-Terminal Wiring, Powering and Standard Positions

Termination is three screw terminals on the rear of the plate for ground, audio hot and audio return, so an installer strips the wire and turns a screwdriver rather than soldering or crimping a connector inside a wall box. Powering is 12 to 48 V DC phantom at a current drain of only 400 microamperes, which is small enough that many plates can share a single supply bus, and where a system offers no phantom power a PH1A single-channel or PH4B four-channel supply provides it. Because the plate fits a standard electrical outlet box, rough-in uses ordinary electrical hardware and conduit and the finished result sits level with the wall or ceiling, resisting tampering in public and unattended spaces while a 120 dB SPL ceiling absorbs loud transient noise. Box offices and ticket windows, drive-through and toll lanes, bank and pharmacy counters, conference and classroom ceilings, interview and holding rooms, elevators, stairwells and transit help points are the positions it was designed for, and a weather-resistant PZM11 LL WR sibling covers exterior gates and lanes.
