AKG PT45 Band A Wireless Bodypack Transmitter with Instrument Cable

AKG PT45: The Small Bodypack Behind a Perception Wireless Channel

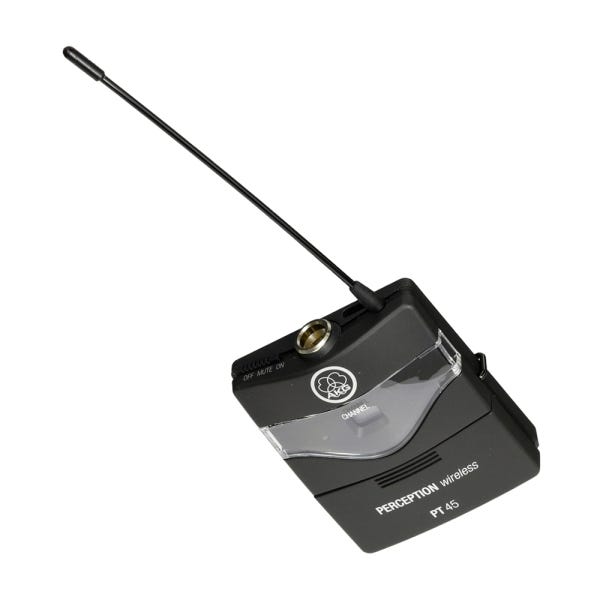

The AKG PT45 is an analog UHF wireless bodypack transmitter from the Perception Wireless 45 series, described by its manufacturer as the smallest and lightest transmitter in its class. Audio runs 40 to 20,000 Hz at 105 dB-A signal-to-noise with 0.8 percent distortion at 1 kHz, modulated as FM with 15 kHz nominal and 45 kHz peak deviation, and a single LR6 AA alkaline cell drives it for 8 hours. Its 3-pin locking mini audio input takes guitars, basses, instrumental pickups and headsets, and the box is unusually complete for a bare transmitter, holding the MKG L instrument cable, the BC400 belt clip and an AA cell alongside the pack. Line-of-sight range is 98 ft (30 m), and RF output is fixed rather than switchable. Buying the transmitter on its own only makes sense when the matching receiver is already in the rack.

Modulation Depth, Fixed Output and a 98 ft Working Range

Modulation on this transmitter is FM at 15 kHz nominal deviation with a 45 kHz peak, and those two figures describe how far the carrier is pushed by the audio it is carrying. Deviation is effectively the modulation depth of an FM link: a wider swing pushes the audio further above the receiver's noise floor and produces the quieter, more robust channel, while a narrower swing lets more channels sit side by side in the same slice of spectrum without splashing into each other, so the numbers a platform chooses tell you what it was optimised for. Choosing 15 kHz nominal places this series firmly in the modest, coexistence-friendly camp, which matches the rest of its design, since RF output is not switchable and the resulting range is 98 ft (30 m) in line of sight rather than a stadium figure. A chapel, a classroom, a meeting room, a fitness studio or a small theatre is comfortably inside that envelope, and a receiver sited where it can see the performer matters far more than any number here.

Physical Size, Mass and Life on a Performer

Size is the specification AKG chose to lead with, and on a body-worn transmitter that is the correct priority. A pack is worn on a belt, a strap or a waistband for hours at a time, and mass is what makes a presenter fidget with it, a guitarist feel it swing on a strap and a dancer notice it during a lift, so a smaller and lighter housing is not a cosmetic detail but the difference between a transmitter that is forgotten and one that is adjusted all evening. The supplied BC400 belt clip is part of the same story, since a clip that holds properly stops the pack rotating and pulling on the microphone or instrument lead. Fitness instructors, worship presenters and pit musicians all report the same thing from the opposite direction, which is that a pack they can feel is a pack they interfere with.

Reading the Band Designation Before Coordinating This Pack

Band A identifies the frequency configuration this transmitter was built for, and AKG does not publish the carrier range for that band in its product documentation. Figures reaching the market through distribution disagree with one another on decimal placement, and because a channel plan is coordinated against a carrier range, none is stated here rather than publish a number that no manufacturer band table supports; the platform-wide carrier span printed on AKG's own set pages is not a band definition and is withheld for the same reason. Printed on the hardware is the authoritative information, on the transmitter and on its matching receiver, so read those labels or request the band table from AKG support before coordinating this pack into a rig. Anyone deploying in the United States should also check the printed designation against current spectrum rules, since post-repack reallocation restricts operation in parts of the former UHF range, and that is a coordination and legality step rather than a comment on the transmitter.

Runtime, the Battery Warning and the Temperature Window

Runtime is 8 hours from one LR6 AA alkaline cell, and a battery status indicator turns red before that cell is exhausted so the warning arrives while there is still time to act. Eight hours on a commodity cell is a deliberate choice for equipment that lives in schools, churches and community venues, because it means a spare battery is available from any shop rather than from a specialist supplier, and nobody has to manage a charging routine for a transmitter used twice a month. What separates a reliable installation from an unreliable one is not the runtime figure but the habit around it, namely fitting a fresh cell before each event and treating the red indicator as an instruction; a body-worn transmitter that dies unannounced takes a speaker out of the mix at the worst possible moment. AKG rates the pack for 14 to 131 degrees F (-10 to 55 degrees C), which covers a cold outdoor platform in winter and a hot, humid studio in summer without qualification.

Who Buys a Bodypack Transmitter on Its Own

Purchasers of a bare pack are almost always adding to something that already works, and the three patterns are easy to recognise. Largest is the venue with an installed SR45 receiver adding a second or third body-worn channel, where the receiver, the antenna position and the mixer input are settled and only the transmitter is missing; next is replacement, because a pack that has been dropped from a platform, left in a green room or simply not returned from an event has to be matched exactly to the band of the receiver still in the rack. Third is the spare, held deliberately by houses of worship, schools and colleges that put wireless into the hands of volunteers and students and would rather plan for loss than hope against it. Fitness studios and theatres add a fourth pattern, buying additional packs so that a second instructor or a second performer can be brought up without re-planning the whole system, and in every case the band designation printed on the transmitter is the detail that has to match.
