AKG P3 S Cardioid Dynamic Microphone with On/Off Switch 144 dB Max SPL

AKG P3 S: A Cardioid Dynamic With a Noiseless On/Off Switch

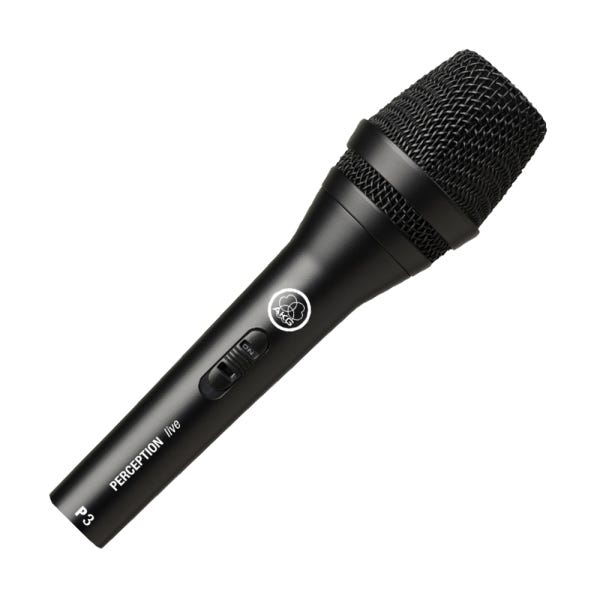

The AKG P3 S is a cardioid dynamic microphone with an on/off switch, covering 40 Hz to 20,000 Hz and handling up to 144 dB SPL. Its element is dynamic rather than condenser, so it needs no phantom power and no battery and will run from any microphone input on any console, stage box or interface. Sensitivity is 2.5 mV/Pa into a 600 ohm electrical impedance, and an integrated windscreen behind the wire-mesh cap controls breath noise without an external foam ball. A die-cast metal body, an SA45 stand adapter and a microphone bag complete the package. It is a general purpose stage microphone that covers backing vocals and instruments with equal willingness.

What the S Suffix Adds and When It Matters

An on/off switch is exactly what the S in this model designation denotes, and it is engineered for noiseless muting so that operating it does not send a click down the line. Muting at the microphone rather than at the console solves a specific problem that comes up constantly in shared-microphone situations: a backing vocalist who needs to cough, a presenter who steps away from a podium, or a guest speaker at a community meeting who should not be live while the previous speaker is talking. On a console with no engineer permanently seated at it, that switch is the difference between a controlled handover and a room full of open microphones. Anyone specifying microphones for a school hall, a rehearsal room, or a house of worship where volunteers run the desk should treat it as a functional requirement rather than a convenience.

Cardioid Rejection and Gain Before Feedback

Cardioid pickup describes a pattern that is most sensitive directly in front of the capsule and least sensitive directly behind it. That rear null is the mechanism behind feedback control, because a monitor wedge or a main speaker positioned in the microphone's dead zone contributes far less to the loop between loudspeaker and microphone that produces howl. In practice it means a backing vocalist can stand closer to a wedge before the system rings, and it also reduces crosstalk from the drum kit or the guitar rig behind the singer. A front-of-house engineer working a small stage with four vocal microphones and no in-ear monitoring gains usable headroom from pattern choice alone, before touching an equalizer.

Response From 40 Hz to 20,000 Hz for Voice and Instruments

Response runs from 40 Hz to 20,000 Hz, which is deliberately broader at the top than a dedicated bass instrument microphone and slightly tighter at the bottom than a full-range studio condenser. That combination is what makes it genuinely multi-purpose: 20,000 Hz at the top preserves the air in a cymbal, a saxophone reed and a strummed acoustic, while starting at 40 Hz keeps subsonic stage rumble and handling thump from ever entering the signal. Handling of 144 dB SPL means the same microphone can sit in front of a loud guitar cabinet without any pad switch. A worship team using one model of microphone for backing vocals, an acoustic guitar amplifier and a saxophone simplifies its inventory without accepting a compromise on any of the three.

Behind the Wire-Mesh Cap: Windscreen and Build

Behind the rugged wire-mesh cap sits an integrated internal windscreen, so plosive control is built into the microphone rather than added as a foam cover that walks off between shows. Plosives are the bursts of air from consonants such as P and B, and they hit the diaphragm as a pressure pulse rather than as sound, which is why a mesh cap alone does not stop them and an internal screen does. The cap itself is metal and the body is die-cast metal, a construction that survives being dropped on a stage, packed in a case with cables, and handed between performers night after night. Community theatre, school productions and rehearsal rooms treat that durability as the primary specification, because a microphone that fails mid-show is a bigger problem than one that sounds slightly different.

Impedance, Mounting and Where the P3 S Earns Its Keep

Electrical impedance is 600 ohms into a recommended load of 2,000 ohms, delivered over a balanced 3-pin XLR male output, which is ordinary behavior for any console, stage box or audio interface input. Supplied with the microphone are an SA45 stand adapter and a microphone bag, so it mounts on a stand immediately with nothing further to buy. The applications that follow from a switched cardioid dynamic are broad: backing vocals, guitar amplifier cabinets, wind instruments and saxophone, snare and toms, percussion, podium announcements, rehearsal room vocals, house of worship handhelds, community theatre and open-mic nights. Buyers usually order several at once, because a stage that standardizes on one durable microphone spends less time troubleshooting and more time playing.
