AKG MK HS Studio D Headset Cable XLR Male and 1/4 in Stereo Jack

AKG MK HS Studio D: The Dynamic-Headset Cable, Not the Condenser One

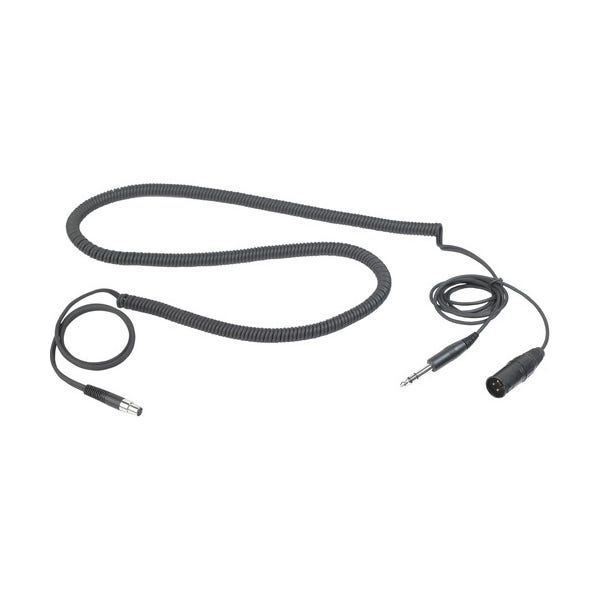

The AKG MK HS Studio D is a detachable, extendable replacement cable for HSD series professional headsets, running from a 6-pin locking mini connector at the headset to a 3-pin XLR male for the microphone and a 1/4 in (6.3 mm) stereo jack for the headphones. Length is extendable from 5.9 ft to 8.2 ft (1.8 to 2.5 m), and the manufacturer states plainly that no phantom powering is required with it. That last point is not a detail, it is the entire reason this part exists alongside the visually identical companion cable in the same family. Ordering by appearance rather than by the letter suffix is the single most common mistake made with these cables.

What the D Suffix Actually Encodes

Suffix letters in this family identify the microphone element type of the headset served, and D means dynamic. An HSD series headset carries a dynamic microphone, a moving-coil element that generates its own signal by induction and therefore needs no external supply whatsoever, whereas an HSC series headset carries a condenser element that will not produce any output at all until phantom power arrives from the console on the standard XLR pins. This cable is built for the first case, so its wiring simply passes audio and does not need to handle a supply voltage, and the companion cable built for the second case is a different part number. A broadcast facility running both headset types keeps both cables labelled separately on the shelf, because plugging a dynamic headset into a phantom-powered input or expecting a condenser headset to work through the wrong lead both end in a channel that does not behave.

Terminations Sized to a Console Panel

Breakout is the practical heart of the design, because a headset needs two very different connections and a studio panel presents each in its own standard form. A 3-pin XLR male is what every broadcast and recording console offers as a microphone input, and a full-size 1/4 in (6.3 mm) stereo jack is what monitor amplifiers, talkback panels and console headphone outputs almost universally present, so this cable lands on both without an adapter anywhere in the chain. Extendable construction then covers the difference between a tidy 5.9 ft at rest and 8.2 ft when an operator stretches across a desk, which is the practical gap between cable management and a trip hazard. Sports commentators, radio operators and outside-broadcast announce positions specify this arrangement because it drops onto existing panels with no modification and no boxes.

Serviceability and Who Stocks a Spare

Detaching at the headset through a locking 6-pin connector is what makes the cable a serviceable item rather than part of a disposable assembly. The lead is the component that fails in daily use, flexed at the entry point and dragged across desks and racks, and being able to replace only that part keeps the earpieces and the microphone capsule in service for years longer than they would otherwise last. Because the 6-pin pinout carries the microphone and both headphone channels on one connector, no generic cable offers it, so the factory part is the only correct answer rather than a preference. Television moderator and host talkback positions, recording studio cue stations, remote truck announce booths and any broadcast maintenance kit are the places one of these should be waiting before it is needed rather than ordered after a failure.
