AKG MDA4 MicroLite Adapter for 4-Pin Miniature Bodypack Inputs

AKG MDA4: MicroLite Adapter for a Four-Pin Miniature Locking Bodypack Input

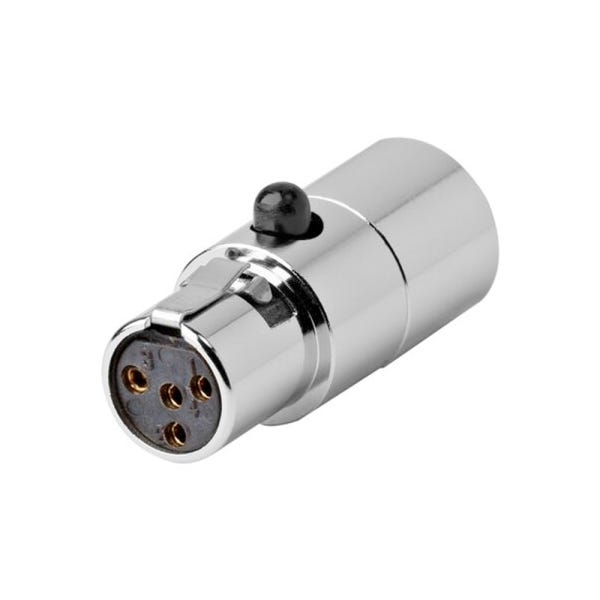

The AKG MDA4 is a connector adapter that links any AKG MicroLite series miniature microphone to a third-party wireless bodypack transmitter whose microphone input is a four-pin miniature locking connector. Built as an inline part with a chrome metal shell, it sits between the end of the microphone cable and the transmitter socket and does one job only, matching the connector standard on the microphone to the connector standard your transmitter expects. Since every MicroLite microphone, from lavalier to ear-hook to head-worn, terminates in the same micro-coaxial screw fitting, one adapter makes that whole range usable on a transmitter it could not otherwise mate with, and the four-pin shell latches into the socket the way a native cable end does. AKG notes that published microphone data may vary once the adapter is in the path. It is a small mechanical part that decides whether an existing microphone inventory has a future.

Why Bodypack Inputs Never Standardised, and What That Means for an Inventory

Wireless bodypack transmitters have never agreed on a single microphone input, and the consequences of that fall almost entirely on whoever owns the microphones. Some platforms use a three-pin locking mini connector, others a four-pin miniature locking type, others a 3.5 mm jack or a three-pin circular shell, and because the pinouts and mechanical shells differ, a microphone terminated for one platform simply cannot be used on another; historically that meant buying a parallel set of talent microphones every time a building added a second transmitter platform. Duplicating a head-worn microphone inventory delivers no artistic return whatsoever, since the second set does exactly what the first set already did. Converting the termination with a small adapter instead lets one microphone inventory serve every transmitter platform in the building, which is why rental houses, universities and worship departments buy these parts in quantity.

Confirming a Four-Pin Miniature Input and Picking From the Family

Getting the right part number depends on one observation, and it is made at the transmitter rather than at the microphone. This version presents a four-pin miniature locking connector, so it is correct when the bodypack's microphone input uses that standard, and the other six members of the family cover the remaining input types across the platforms in common use. Look at the transmitter socket, count the pins, note whether the shell locks by twisting or by latching, confirm the finding against the transmitter's own documentation, and then order the family member that matches; doing that before purchase rather than after is the difference between a five-minute job and a return. Also worth ruling out is an adjacent but unrelated task, since adapting a handheld capsule head onto a handheld transmitter body is a threaded mechanical fitment handled by a different product entirely.

Locking Mechanics, the Published-Data Caveat and Typical Deployments

Mechanically the four-pin miniature shell is the strongest part of a body-worn run once fitted, latching into the transmitter socket so that a cable snagged on scenery pulls at the tape rather than parting the connection mid-scene. Chrome metal construction reinforces that junction while the inline geometry keeps mass low, which matters on a hair-thin miniature cable because a heavy termination drags at whatever is holding the microphone to the performer; the manufacturer's caveat that published microphone data may vary with the adapter fitted is the fair counterweight, and it means the microphone's own figures should be read as a guide once an adapter is in the path. Where these parts end up is predictable: theatre and musical productions standardising on one head-worn microphone across mixed wireless, rental inventories moving stock between clients' transmitter platforms, broadcast and corporate AV departments consolidating spares, touring productions carrying their own talent microphones into unfamiliar houses, and schools with equipment bought across several purchasing generations. Owners describe the outcome consistently, which is that a drawer of microphones stayed useful when the transmitters underneath them changed.
