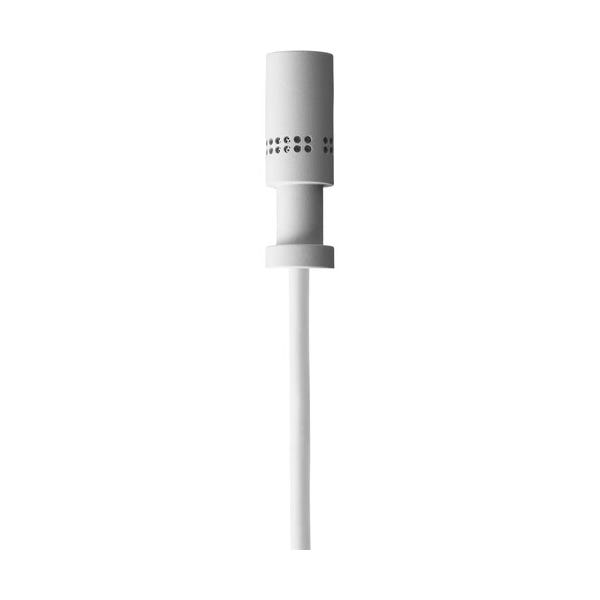

AKG LC81 MD White Miniature Cardioid Lavalier Condenser Microphone

AKG LC81 MD White: A Directional Miniature That Hides in Light Clothing

The AKG LC81 MD in white is a miniature cardioid condenser lavalier from the MicroLite series, built on a capsule 0.17 in (4.4 mm) in diameter and 0.33 in (8.5 mm) long, rated at 13 mV/Pa sensitivity with a 145 dB maximum SPL and a 57 dB-A signal-to-noise ratio. White is a finish rather than a model, one of four the lavalier is offered in, and it exists for wardrobe that the darker finishes fight rather than flatter. Everything electrical matches the other finishes: a 20 Hz to 20,000 Hz response within plus or minus 3 dB, a 5,000 ohm source impedance at 1 kHz and 5 V plug-in power through a 4.5 kilohm resistor. What the white version changes is only whether the audience and the camera can find the microphone.

Where a White Capsule Actually Disappears

Finish selection is a contrast problem, since both the eye and a camera lens locate small objects by the brightness edge around them rather than by their shape. A dark microphone against a white choir surplice, a pale linen jacket or a light liturgical vestment produces a hard black dot and a visible dark line of cable that reads instantly from the back of a room, while a white capsule and lead against the same fabric produce no edge at all and simply cease to register. Choir directors, cathedral and parish music departments, and wedding and ceremony coordinators are the buyers who feel this most acutely, because their wearers are almost always in light robes and their audiences are looking directly at them for an hour. Period and summer costume in theatre and film raises the same requirement from the other direction, where cream, ivory and unbleached linen dominate a wardrobe rack.

Directionality at 4.4 Millimetres, and the Discipline It Demands

A cardioid capsule measuring 0.17 in (4.4 mm) across is genuinely unusual engineering, because achieving a directional response requires a rear acoustic path and a defined port geometry that most manufacturers cannot fit into an element that small. One consequence is that the WM81 wire-mesh cap supplied in the box is not merely armour but part of the acoustic system, so replacing it with a generic cap or leaving it off changes the response rather than just exposing the diaphragm. The other consequence is a fitting discipline, because a directional capsule has to be aimed toward the mouth and an omnidirectional one does not, which makes capsule orientation a checked item at a fitting rather than something left to chance. Sound crews who log a mounting position and orientation per performer get repeatable results from this microphone, and crews who tape it on by feel do not.

Two Mounting Methods Supplied Together

Both an H1 magnet clip and an H2 croco cable clip ship in the box, and they solve different fitting problems. A magnet clip works by clamping a garment between two magnetic halves, so it mounts through fabric without piercing it or gripping an edge, which is what allows a capsule to sit in the middle of a robe front, a costume panel or a delicate blouse where there is no hem to clip to. A croco clip instead grips a garment edge or a cable run mechanically and gives positive strain relief at a collar or a placket. Wardrobe departments handling expensive or borrowed costume favour the magnetic option for exactly that reason, since nothing is punctured and nothing is stressed, while touring and corporate crews tend to reach for the croco clip because it is faster and less likely to be lost.

Plug-In Power and the 5,000 Ohm Interface

Powering is 5 V supplied through a 4.5 kilohm resistor in a two-wire arrangement, delivered entirely by the bodypack transmitter or interface the microphone plugs into. Two-wire plug-in power works by sending the supply down the same conductor that carries the audio back, with the resistor setting the operating current, which is how a microphone this small can work with only two conductors in a hair-thin cable instead of the three a conventional balanced microphone needs. Source impedance is 5,000 ohms at 1 kHz, which is high compared with a lapel microphone and is normal for a plug-in-powered miniature, so the microphone expects a high-impedance bodypack input rather than a standard microphone preamplifier. Reinforced EMC and RF shielding is built around that thin two-conductor lead, which is otherwise the most interference-prone part of any body-worn rig.

Headroom, Contents and Who Orders the White One

Maximum SPL of 145 dB is extreme for a capsule this size and it is what permits a hairline or forehead mount on a performer who is singing at full voice, where pressure at the capsule easily exceeds what an ordinary miniature element can take. Contents beyond the microphone and the MDA1 adapter connector run to two WM81 wire-mesh caps, three W81 foam windscreens, three MUP81 make-up protectors, the H1 magnet clip, the H2 croco clip and a zip bag, which makes it a working kit rather than a bare microphone. Choir and worship teams in light robes, musical theatre companies with pale period costume, broadcast talent in light wardrobe, ceremony officiants and corporate presenters in white and pastel shirting are the buyers who choose this finish deliberately. Rental inventories running mixed bodypack platforms add a further reason, since the threaded adapter interface lets one microphone stock follow whichever transmitter a job supplies.
