AKG K701 Open-Back Over-Ear Reference Headphones 62 Ohm Varimotion

AKG K701: Reference Class Open-Back Listening

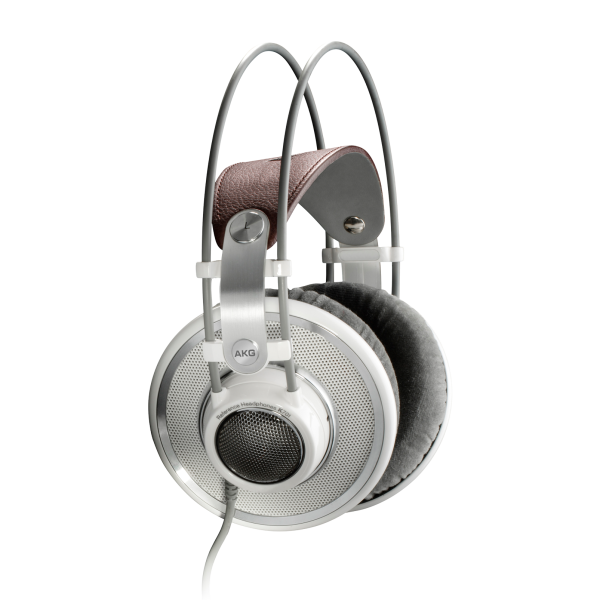

The AKG K701 is an open-back over-ear reference headphone built on a flat-wire aluminium voice coil, covering 10 Hz to 39,800 Hz at a rated impedance of 62 ohms with 105 dB SPL/V sensitivity. Every element of the design serves accuracy over convenience, from the vented earcups that couple the driver to the room to the bi-wired oxygen-free copper cable that keeps the two channels electrically separate. It ships with a headphone stand and a screw-on 1/4 in (6.3 mm) adapter, which tells you plainly what it was made for: a fixed listening position, driven properly, used for hours. For a mix or mastering engineer who needs a second opinion on a decision the monitors cannot settle, that single-minded focus is the entire appeal.

Flat-Wire Voice Coil and Why the Cross-Section Matters

Voice coil construction here uses flat wire rather than conventional round wire, a change that alters how much conductor can occupy the narrow magnetic gap the coil travels through. A ribbon-section winding stacks with almost no air between turns, so a given gap holds more copper cross-section and the motor develops more force per unit of moving mass, while the coil itself presents a lower impedance than the exotic designs it descends from and therefore works with ordinary headphone amplifiers. Faster acceleration and deceleration of a lighter, better-coupled assembly is what an engineer hears as impulse accuracy: a rimshot stops when the drummer stops it, and a plucked string has an attack instead of a swell. Anyone auditioning transient-heavy material, from close-miked percussion to fingerstyle guitar, is listening directly to this part of the design.

The Varimotion Two-Layer Diaphragm

Diaphragm thickness is not constant across this membrane: the patented Varimotion two-layer design thins and thickens deliberately, with an 80-micrometer center zone that behaves virtually as a piston. A single dynamic driver has to satisfy two contradictory demands, because bass needs a large, heavy, compliant membrane that can move a lot of air while treble needs a small, light, stiff one that can change direction thousands of times a second, and a uniform diaphragm can only compromise between them. Varying the thickness across one membrane lets the heavier outer region carry low-frequency excursion while the stiff center zone stays pistonic and untwisted at high frequencies, which is what produces the sparkling highs and controlled bass the range is known for. Classical and acoustic editors judging cymbal decay against double-bass weight in the same passage get the practical benefit of that split.

Open Architecture: What It Buys and What It Costs

Open construction vents the rear of each earcup to the room, so the driver never works against a sealed pocket of trapped air and the standing waves a closed cavity supports simply never form. What listeners describe as spaciousness and pinpoint imaging comes from that absence of back pressure, because instruments occupy positions in a stereo field that reads as space rather than as pressure against the ear. The cost is total and non-negotiable: sound leaks out and room noise leaks in, so these cannot be worn beside a live microphone in a tracking room and are frustrating in an open office. Placed in a treated control room where isolation was never the point, that trade is exactly the right one, which is why open designs dominate mixing and evaluation work.

Driving 62 Ohms at 105 dB SPL Per Volt

Electrically this headphone asks for a real headphone output rather than a phone jack, presenting 62 ohms with 105 dB SPL/V sensitivity and 200 mW maximum input power. Impedance describes how strongly the headphone resists the driving voltage, and sensitivity states how loud one volt makes it, so the two figures together tell an engineer how much voltage swing the source has to deliver before the quiet passages of a master stop having headroom. A console headphone bus, an interface headphone output or a dedicated headphone amplifier will drive it comfortably and the 200 mW ceiling leaves room for transient peaks; a laptop socket will make sound but will run out of authority on dynamics. Studio managers specifying these should confirm the monitoring chain has a proper amplifier stage, because the difference between adequate and correct drive is audible on exactly the material these are bought to judge.

Bi-Wired Cabling and the Fixed-Cable Trade

One practical fact should be stated plainly before purchase: the 9.8 ft (3 m) lead is bi-wired oxygen-free copper and it is fixed rather than detachable, so a damaged cable is a service repair instead of a swap. Bi-wiring means each earpiece receives its own dedicated conductor run all the way back to the plug rather than sharing a common return, which removes a shared path where one channel can modulate the other and tightens channel separation at the extremes of the stereo image. The lead terminates in a gold-plated 3-pin 3.5 mm stereo plug with a screw-on 1/4 in (6.3 mm) adapter supplied, so it reaches a laptop jack and a studio amplifier without an adapter cable hanging off it. Buyers who specifically want a replaceable cable and a second coiled lead should look at the detachable-cable K712 PRO instead, which shares the same acoustic lineage.

Comfort Engineering for Long Sessions

Wearing comfort is handled by specially shaped 3D-form earpads under a padded self-adjusting genuine leather headband. The 3D-form shape is contoured rather than flat, following the slope of the outer ear so pressure spreads across the whole pad instead of concentrating on the cartilage at the front edge, which is where fatigue usually starts in an over-ear design. A self-adjusting headband sets its own tension against the wearer rather than relying on notched sliders, so it cannot be left one click too tight and it returns to the same fit for the next person who picks it up. Post-production editors and mastering listeners who wear headphones for six hours at a stretch feel that difference long before they hear anything wrong with the sound.

Where the K701 Belongs

Critical listening is the job description: mixing and mastering reference in a treated room, evaluation of finished masters, classical and acoustic editing where imaging carries the work, post-production dialogue and sound design, broadcast quality control and audio education. Its open architecture rules out tracking beside a live microphone and its 62 ohm load rules out casual use from a phone, so it belongs at a desk with a real amplifier and the supplied stand beside it. Against the K712 PRO it trades a detachable cable, a second coiled lead and a 3 dB lift in the low end for a bi-wired fixed cable and the original reference-class tuning. Owners who want an accurate, airy, wide-imaging window onto their work rather than a portable convenience keep coming back to exactly this headphone.
